LA 1730 - Acciaio da costruzione adatto al trattamento termico 5001 + 5002

NF EN 1.0503 - C45+N - (Ex AFNOR XC48) - W.Nr 1.1730 - AISI 1045

Taglio alle vostre dimensioni
Lavorazione alle dimensioni
Consegna ≤ 200 HB

Composizione chimico in %

CMnSiSPFe
Mini0,420,600,15--Base
Maxi0,500,800,400,0300,030Base

Proprietà fisiche a 20 °C

Densità : 7,85

Modulo d’elasticità E : 210 000 N/mm²

Coefficiente di Poisson V : 0,28

Coefficiente medio di dilatazione in m/m* °C
tra 20 °C e 100 °C
: 12,1 x 10-6

Conducibilità termica a 20 °C in W (m*k) : 45

Magnetico

Punti di trasformazione

Ac1 : 730 °C, Ac3 : 795 °C.

Fucinatura

1100 °C - 900 °C seguita da un raffreddamento lento e guidato.

Ricotto

750 °C. Raffreddamento lento.

Stato di fornitura

Grezzo di laminazione o di fucinatura addolcita.

Durezza di fornitura ≤ 200 HB.

Controllo US secondo EN 10228-3 Classe 3 //SEP 1921.D .d.3.

Identificazione: .

Attitudine all’uso

Acciaio al carbonio non legato utilizzato nelle utensilerie e nella meccanica generale.

Generalmente utilizzato allo stato non trattato.

Trattamento termico

Tempra: - preriscaldamento a 680 °C,
- riscaldamento a 850 °C,
- tempra agitata in acqua o in olio caldo,
o in un bagno di sali.

Rinvenimento: A partire da 120 °C in base alle caratteristiche meccaniche e alla durezza ricercate.

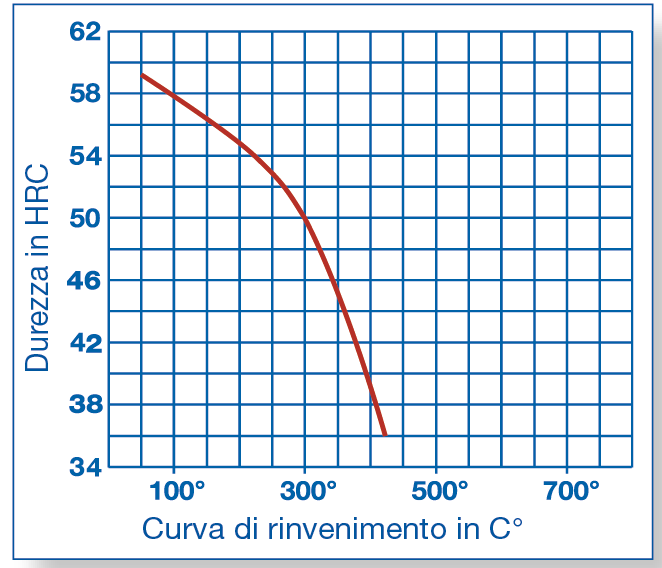

Curva di rinvenimento

Campioni trattati su provette con uno spessore di 25 mm.

Attitudine alla saldatura

Adatto alla saldatura TIG e al laser.

Bacchetta WRLA1 Ø 1,6. Codice Lugand: 43 05 100.

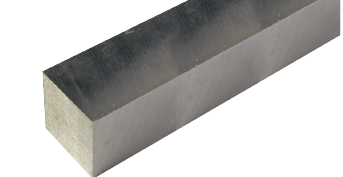

Sezioni disponibili in mm

20253035404550556065707580
859095100105110115120125130140150160
170180190200210220230240250260280310330
40506065708090100110120125130150
160
20x9020x10020x14030x10030x12030x14030x15030x8030x9035x8035x10035x12040x80
40x10040x12040x15050x7050x8050x10050x12050x14050x15060x8060x10060x11060x120
60x14060x15070x10080x10080x12080x14090x11090x120100x120100x150

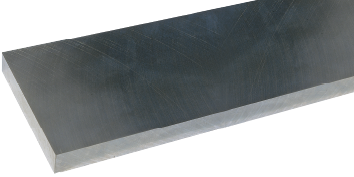

Sezioni disponibili delle lamiere in mm (larghezza massima: 2000 mm)

11152025303540455055606570
7580859095100105110115120125130135
140145150155160170180190200205210220235
250260280290305*325*340*350*
*Forgiato

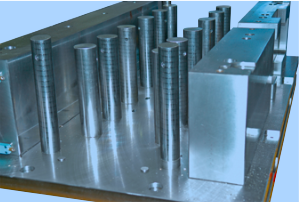

Impieghi industriali

Piastre e strutture per stampi metallici.

Supporti e basi di costruzione meccanica.

Pezzi di meccanica generale debolmente sollecitati.

ATTENZIONE: In caso di impiego del materiale allo stato di fornitura, questo acciaio non è consigliato per per la realizzazione di parti figura ed i pezzi che esigono una resistenza meccanica > 500 N/mm2 (Rm).

- Nessuna garanzia di pulizia di inclusione.

- Non utilizzare mai per i circuiti di fluidi.

LA 1730 - Piatti di precisione

2 lati e 2 facce fresate, 2 estremità (teste) di taglio - Lunghezza 500 mm XCF4

▼▼
SpessoreLargh.Codice LugandProdotto€ senza IVAPeso kg
43245 01 682XCF4 500X 32X 422,23€0,50
4045 01 683XCF4 500X 40X 423,67€0,62
5045 01 685XCF4 500X 50X 428,33€0,78
8045 01 687XCF4 500X 80X 441,88€1,25
10045 01 688XCF4 500X100X 452,30€1,56
12545 01 689XCF4 500X125X 460,03€1,95
15045 01 690XCF4 500X150X 467,55€2,34
16045 01 691XCF4 500X160X 471,42€2,50
40045 01 692XCF4 500X400X 4231,07€6,24
52545 01 693XCF4 500X 25X 521,63€0,49
3245 01 694XCF4 500X 32X 525,05€0,62
4045 01 695XCF4 500X 40X 525,73€0,78
5045 01 696XCF4 500X 50X 528,28€0,98
6345 01 697XCF4 500X 63X 534,93€1,23
8045 01 698XCF4 500X 80X 546,20€1,56
10045 01 699XCF4 500X100X 556,31€1,95
12545 01 700XCF4 500X125X 557,98€2,44
15045 01 701XCF4 500X150X 575,04€2,93
40045 01 703XCF4 500X400X 5226,62€7,80
62545 01 704XCF4 500X 25X 621,62€0,59
3245 01 705XCF4 500X 32X 624,93€0,75
4045 01 706XCF4 500X 40X 626,99€0,94
5045 01 707XCF4 500X 50X 632,07€1,17
6345 01 708XCF4 500X 63X 642,36€1,47
8045 01 709XCF4 500X 80X 650,05€1,87
10045 01 710XCF4 500X100X 657,59€2,34
12545 01 711XCF4 500X125X 667,99€2,93
15045 01 712XCF4 500X150X 682,27€3,51
20045 01 716XCF4 500X200X 6108,38€4,68
25045 01 717XCF4 500X250X 6127,54€5,85
31545 01 720XCF4 500X315X 6171,04€7,37
82545 01 723XCF4 500X 25X 822,41€0,78
3245 01 724XCF4 500X 32X 827,16€1,00
4045 01 725XCF4 500X 40X 831,91€1,25
5045 01 726XCF4 500X 50X 835,37€1,56
6345 01 727XCF4 500X 63X 842,43€1,97
8045 01 728XCF4 500X 80X 851,72€2,50
10045 01 729XCF4 500X100X 863,99€3,12
12545 01 730XCF4 500X125X 873,04€3,90
15045 01 731XCF4 500X150X 892,18€4,68
16045 01 732XCF4 500X160X 8100,19€4,99
25045 01 735XCF4 500X250X 8150,40€7,80
30045 01 736XCF4 500X300X 8166,60€9,36
35045 01 738XCF4 500X350X 8202,10€10,92
40045 01 739XCF4 500X400X 8239,24€12,48
101045 04 001XCF4 500X 10 X 1028,16€0,39
2545 01 740XCF4 500X 25X 1023,33€0,98
3245 01 741XCF4 500X 32X 1031,08€1,25
104045 01 742XCF4 500X 40X 1033,68€1,56
5045 01 743XCF4 500X 50X 1034,65€1,95
6345 01 744XCF4 500X 63X 1047,92€2,46
8045 01 745XCF4 500X 80X 1055,23€3,12
10045 01 746XCF4 500X100X 1062,09€3,90
12545 01 747XCF4 500X125X 1082,70€4,88
15045 01 748XCF4 500X150X 10100,84€5,85
16045 01 749XCF4 500X160X 10107,84€6,24
17545 01 750XCF4 500X175X 10112,47€6,83
20045 01 751XCF4 500X200X 10127,67€7,80
25045 01 752XCF4 500X250X 10156,23€9,75
30045 01 753XCF4 500X300X 10176,85€11,70
40045 01 756XCF4 500X400X 10256,88€15,60
121245 04 002XCF4 500X 12 X 1229,92€0,56
2545 01 757XCF4 500X 25X 1230,09€1,17
3245 01 758XCF4 500X 32X 1234,46€1,50
4045 01 759XCF4 500X 40X 1235,94€1,87
5045 01 760XCF4 500X 50X 1241,16€2,34
6345 01 761XCF4 500X 63X 1251,09€2,95
8045 01 762XCF4 500X 80X 1264,50€3,74
10045 01 763XCF4 500X100X 1279,93€4,68
12545 01 764XCF4 500X125X 1294,13€5,85
15045 01 765XCF4 500X150X 12112,90€7,02
16045 01 766XCF4 500X160X 12129,65€7,49
17545 01 767XCF4 500X175X 12127,44€8,19
20045 01 768XCF4 500X200X 12136,31€9,36
25045 01 769XCF4 500X250X 12169,46€11,70
30045 01 770XCF4 500X300X 12195,15€14,04
40045 01 773XCF4 500X400X 12335,84€18,72
155045 01 774XCF4 500X 50X 1573,77€2,93
6045 01 775XCF4 500X 60X 1587,45€3,51
7045 01 776XCF4 500X 70X 1588,48€4,10
8045 01 777XCF4 500X 80X 1599,17€4,68
9045 01 778XCF4 500X 90X 15106,70€5,27
10045 01 779XCF4 500X100X 15118,15€5,85
12045 01 781XCF4 500X120X 15138,29€7,02
14045 01 782XCF4 500X140X 15161,49€8,19
15045 01 783XCF4 500X150X 15147,86€8,78
18045 01 784XCF4 500X180X 15182,21€10,53
20045 01 785XCF4 500X200X 15199,80€11,70
22045 01 786XCF4 500X220X 15121,36€12,87
25045 01 787XCF4 500X250X 15221,01€14,63
30045 01 788XCF4 500X300X 15250,96€17,55
35045 01 789XCF4 500X350X 15325,84€20,61
40045 01 790XCF4 500X400X 15308,11€23,84
162545 01 791XCF4 500X 25X 1634,16€1,56
3245 01 792XCF4 500X 32X 1638,33€2,00
4045 01 793XCF4 500X 40X 1640,70€2,50
165045 01 794XCF4 500X 50X 1650,69€3,12
6345 01 795XCF4 500X 63X 1664,50€3,93
8045 01 796XCF4 500X 80X 1669,71€4,99
10045 01 797XCF4 500X100X 1691,31€6,24
12545 01 798XCF4 500X125X 16121,72€7,80
15045 01 799XCF4 500X150X 16128,29€9,36
16045 01 800XCF4 500X160X 16136,52€9,98
20045 01 802XCF4 500X200X 16154,46€12,48
30045 01 804XCF4 500X300X 16236,38€18,72
202045 04 004XCF4 500X 20 X 2035,44€1,56
2545 01 808XCF4 500X 25X 2035,70€1,95
3245 01 809XCF4 500X 32X 2042,72€2,50
4045 01 810XCF4 500X 40X 2048,15€3,12
5045 01 811XCF4 500X 50X 2053,61€3,90
6045 01 812XCF4 500X 60X 2090,17€4,68
7045 01 814XCF4 500X 70X 2097,12€5,46
8045 01 815XCF4 500X 80X 2077,11€6,24
9045 01 816XCF4 500X 90X 20118,38€7,02
10045 01 817XCF4 500X100X 2095,52€7,80
12045 01 819XCF4 500X120X 20156,94€9,36
12545 01 820XCF4 500X125X 20117,77€9,75
15045 01 823XCF4 500X150X 20134,98€11,70
16045 01 824XCF4 500X160X 20141,54€12,48
20045 01 827XCF4 500X200X 20165,48€15,60
22045 01 828XCF4 500X220X 20131,86€17,16
25045 01 829XCF4 500X250X 20203,58€19,50
30045 01 830XCF4 500X300X 20227,78€23,40
35045 01 832XCF4 500X350X 20297,16€27,30
40045 01 833XCF4 500X400X 20328,62€31,20
252545 04 005XCF4 500X 25 X 2554,32€2,44
3245 01 835XCF4 500X 32X 2551,57€3,12
4045 01 836XCF4 500X 40X 2553,61€3,90
5045 01 837XCF4 500X 50X 2557,33€4,88
6045 01 838XCF4 500X 60X 2595,96€5,85
7045 01 840XCF4 500X 70X 25108,93€6,83
8045 01 841XCF4 500X 80X 2585,39€7,80
9045 01 842XCF4 500X 90X 2580,46€8,78
10045 01 843XCF4 500X100X 2598,69€9,75
12045 01 845XCF4 500X120X 25159,12€11,70
12545 01 846XCF4 500X125X 25130,52€12,19
14045 01 848XCF4 500X140X 25105,62€13,65
15045 01 849XCF4 500X150X 25150,40€14,63
16045 01 850XCF4 500X160X 25153,62€15,60
20045 01 853XCF4 500X200X 25179,74€19,50
25045 01 855XCF4 500X250X 25218,56€24,38
30045 01 856XCF4 500X300X 25258,16€29,25
306045 01 862XCF4 500X 60X 30103,19€7,07
7045 01 863XCF4 500X 70X 30113,16€8,24
8045 01 864XCF4 500X 80X 30126,95€9,42
10045 01 866XCF4 500X100X 30149,09€11,78
12045 01 867XCF4 500X120X 30169,87€14,04
15045 01 870XCF4 500X150X 30212,98€17,55
20045 01 873XCF4 500X200X 30276,03€23,40
323245 04 006XCF4 500X 32 X 3266,54€3,99
4045 01 879XCF4 500X 40X 3269,05€4,99
5045 01 880XCF4 500X 50X 3278,36€6,24
6045 01 881XCF4 500X 60X 3267,74€7,49
8045 01 883XCF4 500X 80X 32105,46€9,98
10045 01 884XCF4 500X100X 32121,53€12,48
404045 04 007XCF4 500X 40 X 4069,85€6,24
5045 01 897XCF4 500X 50X 4079,31€7,80
6045 01 898XCF4 500X 60X 40131,53€9,36
7045 01 900XCF4 500X 70X 40136,30€10,92
10045 01 903XCF4 500X100X 40137,34€15,60
12045 01 904XCF4 500X120X 40206,63€18,72
13045 01 906XCF4 500X130X 40131,36€20,28
14045 01 907XCF4 500X140X 40235,13€21,84
15045 01 908XCF4 500X150X 40190,01€23,40
16045 01 909XCF4 500X160X 40206,11€24,96
20045 01 912XCF4 500X200X 40249,28€31,20
505045 04 008XCF4 500X 50 X 50100,33€9,75
6045 01 920XCF4 500X 60X 50155,29€11,70
7045 01 922XCF4 500X 70X 50152,93€13,65
8045 01 923XCF4 500X 80X 50134,48€15,60
9045 01 924XCF4 500X 90X 50193,83€17,55
10045 01 925XCF4 500X100X 50166,60€19,50
15045 01 929XCF4 500X150X 50221,35€29,25
20045 01 933XCF4 500X200X 50315,75€39,00
606045 04 009XCF4 500X 60 X 60184,42€14,04
10045 01 944XCF4 500X100X 60221,90€23,55

Spessore: 0, +0,25 mm, Ra 3,2 - Larghezza : 0, +0,4 mm, Ra 3,2
Lunghezza 500 mm : +5, +25 mm, Ra 25

: Segato, Ra 25 - : Fresato, Ra 3,2

Non consigliato per applicazioni di lucidatura.

LA 1730 - Piatti di precisione

2 lati e 2 facce fresate, 2 estremità (teste) di taglio - Lunghezza 1005 mm XCF4

▼▼
SpessoreLargh.Codice LugandProdotto€ senza IVAPeso kg
42045 30 441XCF4 1005X 20 X 431,87€0,63
2545 30 442XCF4 1005X 25 X 433,79€0,78
3045 30 443XCF4 1005X 30 X 438,30€0,94
4045 30 445XCF4 1005X 40 X 436,72€1,25
5045 30 446XCF4 1005X 50 X 440,98€1,57
6045 30 447XCF4 1005X 60 X 456,30€1,88
6345 30 448XCF4 1005X 63 X 455,79€1,98
7045 30 449XCF4 1005X 70 X 472,63€2,19
8045 30 450XCF4 1005X 80 X 472,04€2,51
9045 30 451XCF4 1005X 90 X 488,60€2,82
10045 30 452XCF4 1005X100 X 484,60€3,14
12545 30 453XCF4 1005X125 X 497,72€3,92
15045 30 454XCF4 1005X150 X 4112,03€4,70
40045 30 456XCF4 1005X400 X 4335,80€12,54
52045 30 457XCF4 1005X 20 X 533,29€0,78
2545 30 458XCF4 1005X 25 X 531,76€0,98
3045 30 459XCF4 1005X 30 X 538,97€1,18
4045 30 461XCF4 1005X 40 X 539,23€1,57
5045 30 462XCF4 1005X 50 X 543,82€1,96
6045 30 463XCF4 1005X 60 X 560,70€2,35
7045 30 465XCF4 1005X 70 X 573,03€2,74
8045 30 466XCF4 1005X 80 X 573,91€3,14
9045 30 467XCF4 1005X 90 X 595,08€3,53
10045 30 468XCF4 1005X100 X 588,06€3,92
12545 30 469XCF4 1005X125 X 597,92€4,90
15045 30 470XCF4 1005X150 X 5122,46€5,88
16045 30 471XCF4 1005X160 X 5145,36€6,27
40045 30 472XCF4 1005X400 X 5359,75€15,68
62045 30 473XCF4 1005X 20 X 632,80€0,94
2545 30 474XCF4 1005X 25 X 630,76€1,18
3045 30 475XCF4 1005X 30 X 638,38€1,41
3245 30 476XCF4 1005X 32 X 637,89€1,51
4045 30 477XCF4 1005X 40 X 639,85€1,88
5045 30 478XCF4 1005X 50 X 648,18€2,35
6045 30 479XCF4 1005X 60 X 667,72€2,82
7045 30 481XCF4 1005X 70 X 685,08€3,29
8045 30 482XCF4 1005X 80 X 679,12€3,76
9045 30 483XCF4 1005X 90 X 684,54€4,23
10045 30 484XCF4 1005X100 X 692,70€4,70
12045 30 485XCF4 1005X120 X 6111,20€5,64
14045 30 487XCF4 1005X140 X 6158,12€6,58
15045 30 488XCF4 1005X150 X 6135,01€7,06
20045 30 492XCF4 1005X200 X 6182,70€9,41
25045 30 493XCF4 1005X250 X 6216,16€11,76
30045 30 494XCF4 1005X300 X 6250,26€14,11
40045 30 497XCF4 1005X400 X 6385,59€18,81
82045 30 498XCF4 1005X 20 X 833,06€1,25
2545 30 499XCF4 1005X 25 X 832,30€1,57
3045 30 500XCF4 1005X 30 X 841,16€1,88
4045 30 502XCF4 1005X 40 X 839,84€2,51
85045 30 503XCF4 1005X 50 X 850,12€3,14
6045 30 504XCF4 1005X 60 X 862,62€3,76
8045 30 507XCF4 1005X 80 X 882,36€5,02
9045 30 508XCF4 1005X 90 X 896,19€5,64
10045 30 509XCF4 1005X100 X 899,37€6,27
12045 30 510XCF4 1005X120 X 8109,29€7,53
14045 30 512XCF4 1005X140 X 8145,78€8,78
15045 30 513XCF4 1005X150 X 8156,16€9,41
16045 30 514XCF4 1005X160 X 8177,92€10,03
20045 30 517XCF4 1005X200 X 8196,38€12,54
25045 30 518XCF4 1005X250 X 8265,91€15,68
30045 30 519XCF4 1005X300 X 8295,54€18,81
101045 04 017XCF4 1005X 10 X 1041,06€0,78
2045 30 524XCF4 1005X 20 X 1034,93€1,57
2545 30 525XCF4 1005X 25 X 1033,86€1,96
3045 30 526XCF4 1005X 30 X 1039,93€2,35
3245 30 527XCF4 1005X 32 X 1043,36€2,51
4045 30 528XCF4 1005X 40 X 1043,38€3,14
5045 30 529XCF4 1005X 50 X 1059,61€3,92
6045 30 530XCF4 1005X 60 X 1066,06€4,70
7045 30 532XCF4 1005X 70 X 1078,43€5,49
8045 30 533XCF4 1005X 80 X 1087,99€6,27
9045 30 534XCF4 1005X 90 X 1093,34€7,06
10045 30 535XCF4 1005X100 X 10104,94€7,84
12045 30 536XCF4 1005X120 X 10124,61€9,41
12545 30 537XCF4 1005X125 X 10138,22€9,80
14045 30 538XCF4 1005X140 X 10156,40€10,97
15045 30 539XCF4 1005X150 X 10167,55€11,76
16045 30 540XCF4 1005X160 X 10196,03€12,54
18045 30 542XCF4 1005X180 X 10179,01€14,11
20045 30 543XCF4 1005X200 X 10212,50€15,68
25045 30 544XCF4 1005X250 X 10261,14€19,60
30045 30 545XCF4 1005X300 X 10297,68€23,52
35045 30 547XCF4 1005X350 X 10376,72€27,44
40045 30 548XCF4 1005X400 X 10427,92€31,36
10,410,445 04 010XCF4 1005X 10,4X 10,422,23€0,85
121245 04 018XCF4 1005X 12 X 1242,85€1,13
2045 30 550XCF4 1005X 20 X 1233,97€1,88
2545 30 551XCF4 1005X 25 X 1242,90€2,35
3045 30 552XCF4 1005X 30 X 1250,41€2,82
4045 30 554XCF4 1005X 40 X 1250,05€3,76
5045 30 555XCF4 1005X 50 X 1267,13€4,70
6045 30 556XCF4 1005X 60 X 1275,60€5,64
7045 30 558XCF4 1005X 70 X 1284,28€6,58
8045 30 559XCF4 1005X 80 X 12106,47€7,53
9045 30 560XCF4 1005X 90 X 12113,92€8,47
10045 30 561XCF4 1005X100 X 12132,23€9,41
12045 30 562XCF4 1005X120 X 12143,42€11,29
14045 30 564XCF4 1005X140 X 12177,27€13,17
15045 30 565XCF4 1005X150 X 12188,83€14,11
1216045 30 566XCF4 1005X160 X 12206,35€15,05
20045 30 569XCF4 1005X200 X 12231,87€18,81
25045 30 570XCF4 1005X250 X 12286,72€23,52
30045 30 571XCF4 1005X300 X 12348,28€28,22
40045 30 754 XCF4 1005X400 X 12462,83€37,63
12,412,445 04 012XCF4 1005X 12,4X 12,423,64€1,21
151545 04 019XCF4 1005X 15 X 1551,39€1,76
2045 30 580XCF4 1005X 20 X 1536,79€2,35
2545 30 581XCF4 1005X 25 X 1546,10€2,94
3045 30 582XCF4 1005X 30 X 1554,63€3,53
4045 30 583XCF4 1005X 40 X 1559,37€4,70
5045 30 584XCF4 1005X 50 X 1575,39€5,88
6045 30 585XCF4 1005X 60 X 1580,69€7,06
7045 30 586XCF4 1005X 70 X 1589,83€8,23
8045 30 587XCF4 1005X 80 X 15110,98€9,41
9045 30 588XCF4 1005X 90 X 15125,03€10,58
10045 30 589XCF4 1005X100 X 15132,20€11,76
12045 30 591XCF4 1005X120 X 15167,58€14,11
14045 30 594XCF4 1005X140 X 15188,59€16,46
15045 30 595XCF4 1005X150 X 15193,99€17,64
16045 30 596XCF4 1005X160 X 15211,65€18,81
18045 30 597XCF4 1005X180 X 15218,90€21,17
20045 30 598XCF4 1005X200 X 15238,19€23,52
25045 30 600XCF4 1005X250 X 15294,36€29,40
30045 30 601XCF4 1005X300 X 15340,78€35,28
35045 30 602XCF4 1005X350 X 15454,92€41,15
*50545 30 604XCF4 1005X500 X 15346,09€59,38
15,415,445 04 015XCF4 1005X 15,4X 15,426,96€1,86
20,445 01 117XCF4 1005X 20,4X 15,426,96€2,46
25,445 01 118XCF4 1005X 25,4X 15,430,27€3,07
30,445 01 119XCF4 1005X 30,4X 15,438,77€3,67
40,445 01 121XCF4 1005X 40,4X 15,440,21€4,88
70,445 01 125XCF4 1005X 70,4X 15,464,32€8,50
80,445 01 126XCF4 1005X 80,4X 15,480,39€9,71
100,445 01 128XCF4 1005X100,4X 15,495,52€12,12
180,445 01 136XCF4 1005X180,4X 15,4164,07€21,78
200,445 01 138XCF4 1005X200,4X 15,4177,46€24,19
250,445 01 141XCF4 1005X250,4X 15,4217,64€30,23
161645 04 021XCF4 1005X 16 X 1650,05€2,01
2045 30 607XCF4 1005X 20 X 1650,36€2,51
2545 30 608XCF4 1005X 25 X 1650,82€3,14
3245 30 609XCF4 1005X 32 X 1661,66€4,01
4045 30 610XCF4 1005X 40 X 1666,56€5,02
5045 30 611XCF4 1005X 50 X 1680,97€6,27
6345 30 613XCF4 1005X 63 X 16114,06€7,90
7045 30 614XCF4 1005X 70 X 16107,37€8,78
8045 30 615XCF4 1005X 80 X 16117,31€10,03
10045 30 616XCF4 1005X100 X 16144,33€12,54
12045 30 617XCF4 1005X120 X 16123,93€15,05
1620045 30 622XCF4 1005X200 X 16258,96€25,08
202045 04 022XCF4 1005X 20 X 2047,28€3,14
2545 30 629XCF4 1005X 25 X 2053,98€3,92
3045 30 630XCF4 1005X 30 X 2062,62€4,70
3245 30 631XCF4 1005X 32 X 2069,60€5,02
4045 30 632XCF4 1005X 40 X 2076,60€6,27
5045 30 633XCF4 1005X 50 X 2083,68€7,84
6045 30 634XCF4 1005X 60 X 2092,54€9,41
7045 30 636XCF4 1005X 70 X 20104,20€10,97
8045 30 637XCF4 1005X 80 X 20115,93€12,54
9045 30 638XCF4 1005X 90 X 20127,27€14,11
10045 30 639XCF4 1005X100 X 20146,29€15,68
12045 30 641XCF4 1005X120 X 20175,76€18,81
12545 30 642XCF4 1005X125 X 20204,59€19,60
14045 30 644XCF4 1005X140 X 20215,88€21,95
15045 30 645XCF4 1005X150 X 20228,60€23,52
16045 30 646XCF4 1005X160 X 20239,41€25,08
17545 30 647XCF4 1005X175 X 20253,09€27,44
18045 30 648XCF4 1005X180 X 20239,02€28,22
20045 30 649XCF4 1005X200 X 20262,24€31,36
25045 30 651XCF4 1005X250 X 20 *331,24€39,20
30045 30 652XCF4 1005X300 X 20388,92€47,03
35045 30 654XCF4 1005X350 X 20483,07€54,87
40045 30 655XCF4 1005X400 X 20450,81€62,71
50045 30 657XCF4 1005X500 X 20475,10€78,39
20,420,445 04 020XCF4 1005X 20,4X 20,435,46€3,26
30,445 01 177XCF4 1005X 30,4X 20,445,39€4,86
40,445 01 179XCF4 1005X 40,4X 20,453,92€6,46
100,445 01 186XCF4 1005X100,4X 20,4114,44€16,06
120,445 01 188XCF4 1005X120,4X 20,4128,91€19,25
200,445 01 196XCF4 1005X200,4X 20,4201,45€32,05
250,445 01 199XCF4 1005X250,4X 20,4236,06€40,04
22,4100,445 01 215XCF4 1005X100,4X 22,4117,20€17,63
156,445 30 660XCF4 1005X156,4X 22,4179,13€27,46
196,445 30 661XCF4 1005X196,4X 22,4226,02€34,49
252545 04 023XCF4 1005X 25 X 2572,61€4,90
3045 30 666XCF4 1005X 30 X 2587,52€5,88
3245 30 667XCF4 1005X 32 X 2582,11€6,27
4045 30 668XCF4 1005X 40 X 2583,68€7,84
5045 30 669XCF4 1005X 50 X 2597,81€9,80
6045 30 670XCF4 1005X 60 X 25101,42€11,76
7045 30 672XCF4 1005X 70 X 25115,53€13,72
8045 30 673XCF4 1005X 80 X 25133,35€15,68
9045 30 674XCF4 1005X 90 X 25114,89€17,64
10045 30 675XCF4 1005X100 X 25164,14€19,60
12045 30 677XCF4 1005X120 X 25185,48€23,52
12545 30 678XCF4 1005X125 X 25207,27€24,50
13045 30 679XCF4 1005X130 X 25153,71€25,48
14045 30 680XCF4 1005X140 X 25221,60€27,44
15045 30 681XCF4 1005X150 X 25242,18€29,40
16045 30 682XCF4 1005X160 X 25260,26€31,36
2520045 30 685XCF4 1005X200 X 25306,10€39,20
25045 30 687XCF4 1005X250 X 25393,70€48,99
30045 30 688XCF4 1005X300 X 25439,63€58,79
40045 30 691XCF4 1005X400 X 25575,08€78,39
25,425,445 04 025XCF4 1005X 25,4X 25,452,02€5,06
30,445 01 235XCF4 1005X 30,4X 25,453,92€6,05
60,445 01 239XCF4 1005X 60,4X 25,475,67€12,03
303045 04 024XCF4 1005X 30 X 3095,82€7,02
4045 30 702XCF4 1005X 40 X 3098,32€9,41
5045 30 703XCF4 1005X 50 X 30119,78€11,76
6045 30 704XCF4 1005X 60 X 30125,80€14,11
7045 30 705XCF4 1005X 70 X 30136,43€16,46
8045 30 706XCF4 1005X 80 X 30156,29€18,81
9045 30 707XCF4 1005X 90 X 30170,33€21,17
10045 30 708XCF4 1005X100 X 30185,50€23,52
3011045 30 709XCF4 1005X110 X 30152,12€25,87
12045 30 710XCF4 1005X120 X 30236,42€28,22
12545 30 711XCF4 1005X125 X 30296,65€29,40
14045 30 713XCF4 1005X140 X 30265,79€32,92
15045 30 714XCF4 1005X150 X 30271,64€35,28
16045 30 715XCF4 1005X160 X 30292,53€37,63
18045 30 716XCF4 1005X180 X 30301,87€42,33
20045 30 717XCF4 1005X200 X 30343,83€47,03
25045 30 719XCF4 1005X250 X 30405,86€58,79
323245 04 026XCF4 1005X 32 X 32110,61€8,03
4045 30 727XCF4 1005X 40 X 32111,13€10,03
5045 30 728XCF4 1005X 50 X 32130,40€12,54
7045 30 731XCF4 1005X 70 X 32150,22€17,56
8045 30 732XCF4 1005X 80 X 32178,60€20,07
10045 30 734XCF4 1005X100 X 32201,53€25,08
404045 04 027XCF4 1005X 40 X 40120,19€12,54
5045 30 761XCF4 1005X 50 X 40132,55€15,68
6045 30 762XCF4 1005X 60 X 40143,12€18,81
7045 30 764XCF4 1005X 70 X 40156,64€21,95
8045 30 765XCF4 1005X 80 X 40170,35€25,08
9045 30 766XCF4 1005X 90 X 40183,66€28,22
10045 30 767XCF4 1005X100 X 40228,52€31,36
11045 30 768XCF4 1005X110 X 40170,43€34,49
12045 30 769XCF4 1005X120 X 40241,23€37,63
14045 30 772XCF4 1005X140 X 40285,03€43,90
15045 30 773XCF4 1005X150 X 40303,84€47,03
20045 30 777XCF4 1005X200 X 40386,47€62,71
25045 30 779XCF4 1005X250 X 40366,72€78,39
505045 04 028XCF4 1005X 50 X 50169,45€19,60
506045 30 794XCF4 1005X 60 X 50164,61€23,52
7045 30 796XCF4 1005X 70 X 50189,16€27,44
8045 30 797XCF4 1005X 80 X 50218,53€31,36
10045 30 799XCF4 1005X100 X 50263,46€39,20
606045 04 029XCF4 1005X 60 X 60220,77€28,22
7045 30 826XCF4 1005X 70 X 60230,10€32,92
8045 30 827XCF4 1005X 80 X 60249,35€37,63
707045 04 033XCF4 1005X 70 X 70247,94€38,41
8045 30 859XCF4 1005X 80 X 70288,10€43,90
10045 30 861XCF4 1005X100 X 70299,18€54,87
808045 04 034XCF4 1005X 80 X 80338,55€50,17
10045 30 880XCF4 1005X100 X 80364,75€62,71

Spessore: 0, +0,25 mm, Ra 3,2 - Larghezza : 0, +0,4 mm, Ra 3,2
Lunghezza 1005 mm : +5, +25 mm, Ra 25

: Segato, Ra 25 - : Fresato, Ra 3,2 - *4 spigoli segati

Non consigliato per applicazioni di lucidatura..

LA 1730 - Acciai a linguetta - EN 10277-2 / 10278

2 lati e 2 facce fresate, 2 estremità (teste) di taglio - Lunghezza 500 mm XCF4

Stato di fornitura

Consegnato allo stato trattato 650/750 MPa (< 20 HRC).

Trattamento termico

In caso di ricerca della durezza > 20 HRC, vedi scheda tecnica LA1730.

▼▼
SpessoreTol.
l
Largh.Tol.
a
Codice LugandProdotto€ senza IVAPeso kg
2h92h945 27 100PLAT A CLAVETTE 500 X 2 h9 X 2 h104,28€0,016
3h93h945 27 102PLAT A CLAVETTE 500 X 3 h9 X 3 h94,28€0,035
4h94h945 27 104PLAT A CLAVETTE 500 X 4 h9 X 4 h94,61€0,062
5h95h945 27 106PLAT A CLAVETTE 500 X 5 h9 X 5 h103,76€0,098
6h96h945 27 108PLAT A CLAVETTE 500 X 6 h9 X 6 h95,96€0,14
6h1110h945 27 110PLAT A CLAVETTE 500 X 10 h9 X 6 h119,50€0,234
6h1112h945 27 112PLAT A CLAVETTE 500 X 12 h9 X 6 h1115,80€0,281
7h97h945 27 114PLAT A CLAVETTE 500 X 7 h9 X 7 h1010,71€0,191
7h118h945 27 116PLAT A CLAVETTE 500 X 8 h9 X 7 h1110,71€0,218
8h98h945 27 118PLAT A CLAVETTE 500 X 8 h9 X 8 h106,55€0,25
8h1110h945 27 120PLAT A CLAVETTE 500 X 10 h9 X 8 h1110,25€0,312
8h1112h945 27 122PLAT A CLAVETTE 500 X 12 h9 X 8 h119,48€0,374
8zb1016zb1045 27 124PLAT A CLAVETTE 500 X 16 k9 X 8 k919,28€0,499
9h1114h945 27 126PLAT A CLAVETTE 500 X 14 h9 X 9 h1111,11€0,491
10h910h945 27 128PLAT A CLAVETTE 500 X 10 h9 X 10 h910,71€0,39
10h1112h945 27 130PLAT A CLAVETTE 500 X 12zb10 X 10 h1115,40€0,468
10h1114h945 27 132PLAT A CLAVETTE 500 X 14 k9 X 10 k915,00€0,546
10h1116h945 27 134PLAT A CLAVETTE 500 X 16 h9 X 10 h917,14€0,624
10zb1018zb1045 27 136PLAT A CLAVETTE 500 X 18 k9 X 10 k919,28€0,702
11h1118h945 27 138PLAT A CLAVETTE 500 X 18 h9 X 11 h1120,07€0,772
12h912h945 27 140PLAT A CLAVETTE 500 X 12 h9 X 12 h919,28€0,562
12zb1014zb1045 27 142PLAT A CLAVETTE 500 X 14zb10 X 12zb1020,35€0,655
12zb1016zb1045 27 144PLAT A CLAVETTE 500 X 16 k9 X 12 k920,35€0,749
12zb1018zb1045 27 146PLAT A CLAVETTE 500 X 18 k9 X 12 k921,42€0,842
12h1120h945 27 148PLAT A CLAVETTE 500 X 20 h9 X 12 h1123,72€0,936
14h914h945 27 150PLAT A CLAVETTE 500 X 14 h9 X 14 h1017,80€0,764
14zb1016zb1045 27 152PLAT A CLAVETTE 500 X 16zb10 X 14zb1029,99€0,874
14h1122h945 27 154PLAT A CLAVETTE 500 X 22 h9 X 14 h1025,71€1,201
14h1124h945 27 156PLAT A CLAVETTE 500 X 24 h9 X 14 h1029,99€1,31
14h1125h945 27 158PLAT A CLAVETTE 500 X 25 h9 X 14 h1029,99€1,365
16h916h945 27 160PLAT A CLAVETTE 500 X 16 h9 X 16 h922,50€0,998
16zb1020zb1045 27 162PLAT A CLAVETTE 500 X 20 k9 X 16 k928,92€1,248
16h1128h945 27 164PLAT A CLAVETTE 500 X 28 h9 X 16 h1139,94€1,747
18h1132h945 27 166PLAT A CLAVETTE 500 X 32 h9 X 18 h1144,99€2,246
20h1136h945 27 168PLAT A CLAVETTE 500 X 36 h9 X 20 h1058,92€2,808
22h1140h945 27 170PLAT A CLAVETTE 500 X 40 h9 X 22 h1181,43€3,432
25h1145h945 27 190PLAT A CLAVETTE 500 X 45 h9 X 25 h1085,70€4,39
28h1132zb1045 27 210PLAT A CLAVETTE 500 X 32 h9 X 28 h1085,70€3,494
28h1150h945 27 220PLAT A CLAVETTE 500 X 50 h9 X 28 h10128,54€5,46

2 tolleranze disponibili :

h9: tolleranza “standardizzata” utilizzata per i PT di nuova costruzione.

zb10: cosiddetta tolleranza di "riparazione" per blocchi dimensione extra utilizzati nella manutenzione.

Possibilità di trattamento termico se necessario.

: Segato, Ra 25 - : Fresato, Ra 3,2.

DIN 6880.

Sezioni disponibili in mm

20304051718191101111121
151161171182
