LA 2379 - Acciaio per lavoro a freddo 50 61

EN X153CrMoV12 (Ex AFNOR Z160CDV12) - W.Nr 1.2379 - AISI D2

Consegna ≤ 255 HB
Dur ezza massima 62 HRC
Lucidatura
Nit. 1100 HV
PVD

Proprietà fisiche a 20 °C

Densità : 7,85

Modulo d’elasticità E : 210 000 N/mm²

Coefficiente di Poisson V : 0,3

Coefficiente medio di dilatazione in m/m* °C
tra 20 °C e 100 °C
: 11,2 x 10-6
tra 20 °C e 200 °C : 11,5 x 10-6
tra 20 °C e 400 °C : 12,3 x 10-6

Conducibilità termica a 20 °C in W (m*k) : 16

Magnetico

Punti di trasformazione

- Ac1 : 810 °C, - Ac3 : 845 °C.

Fucinatura

1100 °C - 900 °C seguita da un raffreddamento lento e guidato.

Ricotto

750 °C.

Stato di fornitura

Acciaio consegnato allo stato ricotto ≤ 255 HB.

Controllo US secondo EN 10228-3 Classe 3.

Identificazione: verde rigato giallo .

Attitudine all’uso

In base al trattamento termico realizzato e alle caratteristiche meccaniche desiderate:

- Acciaio per utensili altolegato utilizzato nella realizzazione di stampi per la trasformazione di materie plastiche, per il taglio, la fucinatura e l’imbutitura a freddo.

- Grande intensità di tempra.

- Grande resistenza all’usura.

- Grande attitudine alla nitrurazione e ai trattamenti superficiali.

- Resistenza alla corrosione media.

Attitudini alla lucidatura

Idoneo alla lucidatura 'brillante 6 micron'.

Attitudine alla saldatura

Adatto alla saldatura TIG e al laser.

Bacchetta WRLA7 Ø 1,6. Codice Lugand: 43 05 125.

Trattamento termico

Tempra: - preriscaldamento a 750 °C,
- riscaldamento a 1050 °C,
- tempra in olio caldo o in un bagno di sali o con gas.

Rinvenimento: A partire da 150 °C in base alla durezza e alle caratteristiche meccaniche desiderate.

Curva di rinvenimento

Campioni trattati su provette con uno spessore di 25 mm.

Trattamenti tipici

Ricerca di una durezza ottimale (> 62 HRC) :

- Preriscaldamento a 750 °C.

- Riscaldamento a 1075 °C.

- Tempra in olio caldo, o in un bagno di sali, o con gas.

- Passaggio tramite il freddo a -76 °C.

- 1 rinvenimento a 150 °C.

- Variante per il trattamento seguito da rivestimento PVD.

- Realizzare due rinvenimenti successivi a 520 °C.

Ricerca di una buona tenacità (53/56HRC) :

- Preriscaldamento a 750 °C.

- Riscaldamento a 1030 °C.

- Tempra in olio caldo, o in un bagno di sali, o con gas.

- Due rinvenimenti successivi: primo rinvenimento a 520 °C, secondo rinvenimento a 580°C.

Impieghi industriali

Stampi e componenti per stampi materie plastiche abrasive.

Lame per cesoie.

Utensili da taglio.

Utensili per imbutitura.

Spessori, rulli, pezzi d’usura.

EN X153CrMoV12 (Ex AFNOR Z160CDV12) - W.Nr 1.2379 - AISI D2

LA 2379 - Blocchi di precisione trattati 61 HRC

2 lati rettificati, 4 lati fresati 2379BLT

SpessoreSezioneCodice LugandProdotto€ senza IVAPeso kg
15200,4 x 200,445 78 0052379BLT 200,5X200,5X 15317,30€4,70
250,4 x 250,445 78 0062379BLT 250,5X250,5X 15427,30€7,34
20100,4 x 100,445 78 0122379BLT 100,5X100,5X 20141,73€1,57
120,4 x 120,445 78 0132379BLT 120,5X120,5X 20173,46€2,26
200,4 x 200,445 78 0152379BLT 200,5X200,5X 20327,88€6,26
250,4 x 250,445 78 0162379BLT 250,5X250,5X 20448,46€9,78
25100,4 x 100,445 78 0222379BLT 100,5X100,5X 25148,08€1,97
150,4 x 150,445 78 0242379BLT 150,5X150,5X 25239,04€4,41
200,4 x 200,445 78 0252379BLT 200,5X200,5X 25349,03€7,83
30150,4 x 150,445 78 0342379BLT 150,5X150,5X 30268,65€5,29
200,4 x 200,445 78 0352379BLT 200,5X200,5X 30387,11€9,40
250,4 x 250,445 78 0362379BLT 250,5X250,5X 30581,72€14,67
4080,4 x 80,445 78 0412379BLT 80,5X 80,5X 40194,61€2,02
100,4 x 100,445 78 0422379BLT 100,5X100,5X 40211,54€3,15
200,4 x 200,445 78 0452379BLT 200,5X200,5X 40501,34€12,53
250,4 x 250,445 78 0462379BLT 250,5X250,5X 40725,57€19,56
50100,4 x 100,445 78 0522379BLT 100,5X100,5X 50262,30€3,93
120,4 x 120,445 78 0532379BLT 120,5X120,5X 50330,00€5,65
200 x 20045 78 0552379BLT 200 X200 X 50615,57€15,66
250,4 x 250,445 78 0562379BLT 250,5X250,5X 50871,53€24,45
60200,4 x 200,445 78 0652379BLT 200,5X200,5X 60719,22€18,79

LA 2379 - Piatti di precisione trattati 61 HRC

2 lati e 2 facce fresate, 2 estremità (teste) di taglio - Lunghezza 500 mm 2379BLT

61 HRC

▼▼
SpessoreLargh.Codice LugandProdotto€ senza IVAPeso kg
2,2300,345 78 2002,34
5,2300,345 78 2902379BLT 500X300,3X 5,2232,00€5,86
6,2300,345 78 3207,03
10,2300,345 78 38011,71
12,2300,345 78 40014,05

61 HRC

Spessore: 0, +0,2 mm, Ra 1,6 - Larghezza: 0, +0,4 mm, Ra 3,2 - Tolleranza: +0, -2 HRC

: Fresato, Ra 3,2

Il prodotto non adatta alla realizzazione di impronte / parti figura che devono ricevere lucidatura tipo ottica.

Spessore: 0, +0,25 mm, Ra 3,2 - Larghezza : 0, +0,4 mm, Ra 3,2
Lunghezza 500 mm : +5, +25 mm, Ra 25

: Segato, Ra 25 - : Fresato, Ra 3,2 - *4 spigoli segati

Il prodotto non adatta alla realizzazione di impronte / parti figura che devono ricevere lucidatura tipo ottica.

LA 2379 - Tondi di precisione

Ø rettificati (h8) estremità segate - Lunghezza 1000 mm 2379RD

▼▼▼
ØCodice LugandProdotto€ senza IVAPeso kg
1045 76 0102379RD 1000 ROND 10 h8 *22,85€0,61
1245 76 0122379RD 1000 ROND 12 h832,70€0,88
1545 76 0152379RD 1000 ROND 15 h850,48€1,38
2045 76 0202379RD 1000 ROND 20 h8107,21€2,45
2545 76 0252379RD 1000 ROND 25 h8162,12€3,83
3045 76 0302379RD 1000 ROND 30 h8209,70€5,51
4045 76 0402379RD 1000 ROND 40 h8373,20€9,80

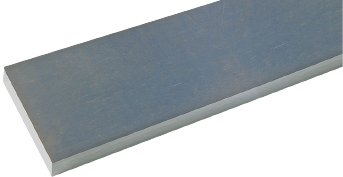

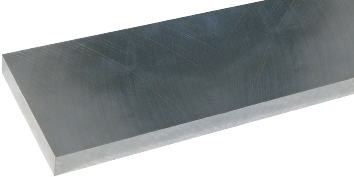

LA 2379 - Piatti di precisione

2 lati e 2 facce fresate, 2 estremità (teste) di taglio - Lunghezza 1005 mm 2379F4

▼▼
SpessoreLargh.Codice LugandProdotto€ senza IVAPeso kg
2,410,445 71 3432379F4 1005X 10,4X 2,442,38€0,20
15,445 71 3442379F4 1005X 15,4X 2,445,66€0,29
20,445 71 3452379F4 1005X 20,4X 2,445,46€0,38
25,445 71 3462379F4 1005X 25,4X 2,446,65€0,48
30,445 71 3472379F4 1005X 30,4X 2,455,22€0,57
40,445 71 3492379F4 1005X 40,4X 2,459,73€0,76
50,445 71 3502379F4 1005X 50,4X 2,467,10€0,95
60,445 71 3512379F4 1005X 60,4X 2,476,41€1,14
80,445 71 3542379F4 1005X 80,4X 2,493,96€1,51
100,445 71 3562379F4 1005X100,4X 2,4118,27€1,89
125,445 71 3572379F4 1005X125,4X 2,4147,81€2,36
3,410,445 71 3642379F4 1005X 10,4X 3,445,61€0,28
15,445 71 3652379F4 1005X 15,4X 3,449,16€0,41
20,445 71 3662379F4 1005X 20,4X 3,450,04€0,54
25,445 71 3672379F4 1005X 25,4X 3,456,80€0,68
30,445 71 3682379F4 1005X 30,4X 3,460,57€0,81
40,445 71 3702379F4 1005X 40,4X 3,466,41€1,08
50,445 71 3712379F4 1005X 50,4X 3,476,29€1,34
60,445 71 3722379F4 1005X 60,4X 3,483,03€1,61
70,445 71 3742379F4 1005X 70,4X 3,497,07€1,88
80,445 71 3752379F4 1005X 80,4X 3,4109,55€2,14
100,445 71 3772379F4 1005X100,4X 3,4127,31€2,68
125,445 71 3782379F4 1005X125,4X 3,4161,13€3,34
150,445 71 3792379F4 1005X150,4X 3,4179,11€4,01
200,445 71 3822379F4 1005X200,4X 3,4251,03€5,34
300,445 71 3842379F4 1005X300,4X 3,4318,85€8,01
4,410,445 71 3852379F4 1005X 10,4X 4,448,85€0,36
15,445 71 3862379F4 1005X 15,4X 4,450,04€0,53
20,445 71 3872379F4 1005X 20,4X 4,453,82€0,70
25,445 71 3882379F4 1005X 25,4X 4,460,60€0,88
30,445 71 3892379F4 1005X 30,4X 4,466,11€1,05
40,445 71 3912379F4 1005X 40,4X 4,470,63€1,39
50,445 71 3922379F4 1005X 50,4X 4,483,75€1,74
60,445 71 3932379F4 1005X 60,4X 4,490,87€2,08
70,445 71 3952379F4 1005X 70,4X 4,4100,04€2,43
80,445 71 3962379F4 1005X 80,4X 4,4107,80€2,77
4,490,445 71 3972379F4 1005X 90,4X 4,4113,48€3,12
100,445 71 3982379F4 1005X100,4X 4,4145,13€3,46
125,445 71 3992379F4 1005X125,4X 4,4166,19€4,33
150,445 71 4002379F4 1005X150,4X 4,4188,19€5,19
250,445 71 4042379F4 1005X250,4X 4,4288,43€8,64
300,445 71 4052379F4 1005X300,4X 4,4361,93€10,36
5,410,445 71 4062379F4 1005X 10,4X 5,456,13€0,44
15,445 71 4072379F4 1005X 15,4X 5,464,43€0,65
20,445 71 4082379F4 1005X 20,4X 5,461,50€0,86
25,445 71 4092379F4 1005X 25,4X 5,472,99€1,08
30,445 71 4102379F4 1005X 30,4X 5,476,44€1,29
40,445 71 4122379F4 1005X 40,4X 5,484,59€1,71
50,445 71 4132379F4 1005X 50,4X 5,489,06€2,13
60,445 71 4142379F4 1005X 60,4X 5,4103,15€2,56
70,445 71 4162379F4 1005X 70,4X 5,4111,04€2,98
80,445 71 4172379F4 1005X 80,4X 5,4123,58€3,40
90,445 71 4182379F4 1005X 90,4X 5,4128,79€3,83
100,445 71 4192379F4 1005X100,4X 5,4178,47€4,25
125,445 71 4202379F4 1005X125,4X 5,4184,03€5,31
150,445 71 4212379F4 1005X150,4X 5,4206,54€6,37
200,445 71 4242379F4 1005X200,4X 5,4274,36€8,48
300,445 71 4262379F4 1005X300,4X 5,4437,30€12,72
6,2 - 6,46,445 73 0012379C 1005X 6,4X 6,495,87€0,32
10,445 71 4272379F4 1005X 10,4X 6,460,82€0,52
15,445 71 4282379F4 1005X 15,4X 6,463,57€0,77
20,445 73 7152379F4 1005X 20,4X 6,262,49€0,99
25,445 73 7162379F4 1005X 25,4X 6,268,62€1,23
30,445 73 7172379F4 1005X 30,4X 6,280,86€1,48
32,445 71 4322379F4 1005X 32,4X 6,487,02€1,63
40,445 73 7182379F4 1005X 40,4X 6,287,17€1,96
50,445 70 0062379F4 1005X 50,4X 6,297,39€2,45
60,445 73 7192379F4 1005X 60,4X 6,2117,50€2,94
63,445 71 4362379F4 1005X 63,4X 6,4134,90€3,18
70,445 73 7202379F4 1005X 70,4X 6,2144,02€3,42
80,445 73 7212379F4 1005X 80,4X 6,2162,92€3,91
90,445 71 4392379F4 1005X 90,4X 6,4157,95€4,54
6,2 - 6,4100,445 70 0122379F4 1005X100,4X 6,2194,56€4,88
125,445 71 4412379F4 1005X125,4X 6,4213,20€6,29
150,445 73 7222379F4 1005X150,4X 6,2281,98€7,31
160,445 71 4432379F4 1005X160,4X 6,4270,76€8,05
200,445 73 7232379F4 1005X200,4X 6,2345,80€9,74
300,445 73 7252379F4 1005X300,4X 6,2464,17€14,60
8,2 - 8,48,445 73 0022379C 1005X 8,4X 8,493,93€0,55
10,445 71 4492379F4 1005X 10,4X 8,477,38€0,68
15,445 71 4502379F4 1005X 15,4X 8,481,63€1,01
20,445 70 0302379F4 1005X 20,4X 8,271,10€1,31
25,445 70 0312379F4 1005X 25,4X 8,274,63€1,63
30,445 70 0322379F4 1005X 30,4X 8,289,21€1,95
32,445 70 0332379F4 1005X 32,4X 8,290,11€2,08
40,445 70 0342379F4 1005X 40,4X 8,299,25€2,60
50,445 70 0352379F4 1005X 50,4X 8,2113,04€3,24
60,445 70 0362379F4 1005X 60,4X 8,2127,88€3,88
63,445 71 4582379F4 1005X 63,4X 8,4137,50€4,17
70,445 70 0382379F4 1005X 70,4X 8,2162,17€4,53
80,445 70 0392379F4 1005X 80,4X 8,2174,99€5,17
90,445 73 7262379F4 1005X 90,4X 8,2202,04€5,81
100,445 70 0412379F4 1005X100,4X 8,2217,76€6,45
125,445 71 4632379F4 1005X125,4X 8,4244,79€8,26
150,445 70 0462379F4 1005X150,4X 8,2357,66€9,67
160,445 71 4652379F4 1005X160,4X 8,4391,01€10,56
200,445 70 0512379F4 1005X200,4X 8,2426,29€12,88
250,445 73 7272379F4 1005X250,4X 8,2506,38€16,10
300,445 73 7282379F4 1005X300,4X 8,2552,88€19,31
10,410,445 73 0032379C 1005X 10,4X 10,477,28€0,85
15,445 71 4702379F4 1005X 15,4X 10,485,88€1,26
20,445 70 0592379F4 1005X 20,4X 10,479,97€1,66
25,445 70 0602379F4 1005X 25,4X 10,483,49€2,07
30,445 70 0612379F4 1005X 30,4X 10,491,39€2,48
32,445 70 0622379F4 1005X 32,4X 10,495,43€2,64
40,445 70 0632379F4 1005X 40,4X 10,4110,68€3,29
50,445 70 0642379F4 1005X 50,4X 10,4132,83€4,11
60,445 70 0652379F4 1005X 60,4X 10,4142,33€4,92
10,463,445 71 4712379F4 1005X 63,4X 10,4158,93€5,17
70,445 70 0672379F4 1005X 70,4X 10,4175,90€5,74
80,445 70 0682379F4 1005X 80,4X 10,4194,31€6,55
90,445 70 0692379F4 1005X 90,4X 10,4202,45€7,37
100,445 70 0702379F4 1005X100,4X 10,4239,66€8,19
120,445 70 0722379F4 1005X120,4X 10,4317,02€9,82
125,445 71 4722379F4 1005X125,4X 10,4298,83€10,22
150,445 70 0752379F4 1005X150,4X 10,4368,72€12,26
160,445 71 4732379F4 1005X160,4X 10,4403,14€13,08
200,445 70 0802379F4 1005X200,4X 10,4485,56€16,34
250,445 70 0832379F4 1005X250,4X 10,4584,97€20,41
300,445 70 0852379F4 1005X300,4X 10,4687,49€24,49
12,412,445 73 0042379C 1005X 12,4X 12,490,60€1,21
15,445 71 4762379F4 1005X 15,4X 12,4101,54€1,50
20,445 70 0882379F4 1005X 20,4X 12,489,99€1,98
25,445 70 0892379F4 1005X 25,4X 12,497,93€2,47
30,445 70 0902379F4 1005X 30,4X 12,4116,35€2,95
32,445 70 0912379F4 1005X 32,4X 12,4122,43€3,15
40,445 70 0922379F4 1005X 40,4X 12,4132,36€3,93
50,445 70 0932379F4 1005X 50,4X 12,4136,89€4,90
60,445 70 0942379F4 1005X 60,4X 12,4168,31€5,87
63,445 71 4772379F4 1005X 63,4X 12,4179,13€6,16
70,445 70 0962379F4 1005X 70,4X 12,4194,83€6,84
80,445 70 0972379F4 1005X 80,4X 12,4221,68€7,82
100,445 70 0992379F4 1005X100,4X 12,4265,57€9,76
120,445 70 1012379F4 1005X120,4X 12,4327,68€11,70
125,445 71 4782379F4 1005X125,4X 12,4360,93€12,19
140,445 70 10313,65
150,445 70 1042379F4 1005X150,4X 12,4398,93€14,62
160,445 71 4792379F4 1005X160,4X 12,4437,48€15,59
200,445 70 1092379F4 1005X200,4X 12,4552,88€19,48
250,445 71 4812379F4 1005X250,4X 12,4647,70€24,34
15,415,445 73 0052379C 1005X 15,4X 15,4103,28€1,86
20,445 70 1172379F4 1005X 20,4X 15,497,52€2,46
25,445 70 1182379F4 1005X 25,4X 15,4103,42€3,07
30,445 70 1192379F4 1005X 30,4X 15,4139,88€3,67
15,432,445 70 1202379F4 1005X 32,4X 15,4147,34€3,91
40,445 70 1212379F4 1005X 40,4X 15,4165,03€4,88
50,445 70 1222379F4 1005X 50,4X 15,4184,33€6,08
60,445 70 1232379F4 1005X 60,4X 15,4208,38€7,29
70,445 70 1252379F4 1005X 70,4X 15,4241,87€8,50
80,445 70 1262379F4 1005X 80,4X 15,4254,39€9,71
90,445 70 1272379F4 1005X 90,4X 15,4284,19€10,91
100,445 70 1282379F4 1005X100,4X 15,4321,85€12,12
120,445 70 1302379F4 1005X120,4X 15,4376,93€14,53
150,445 70 1332379F4 1005X150,4X 15,4444,01€18,16
200,445 70 1382379F4 1005X200,4X 15,4658,15€24,19
16,416,445 73 0062379C 1005X 16,4X 16,4105,71€2,11
20,445 70 1462379F4 1005X 20,4X 16,4105,88€2,62
25,445 70 1472379F4 1005X 25,4X 16,4111,23€3,27
30,445 70 1482379F4 1005X 30,4X 16,4146,53€3,91
32,445 70 1492379F4 1005X 32,4X 16,4150,80€4,17
40,445 70 1502379F4 1005X 40,4X 16,4169,57€5,19
50,445 70 1512379F4 1005X 50,4X 16,4196,42€6,48
60,445 70 1522379F4 1005X 60,4X 16,4247,06€7,76
63,445 70 1532379F4 1005X 63,4X 16,4227,14€8,15
80,445 70 1552379F4 1005X 80,4X 16,4269,14€10,34
100,445 70 1572379F4 1005X100,4X 16,4328,87€12,91
120,445 70 1592379F4 1005X120,4X 16,4443,21€15,48
125,445 71 4892379F4 1005X125,4X 16,4423,43€16,12
150,445 70 1622379F4 1005X150,4X 16,4514,87€19,34
160,445 71 4902379F4 1005X160,4X 16,4516,30€20,62
200,445 70 1672379F4 1005X200,4X 16,4713,72€25,76
250,445 70 1702379F4 1005X250,4X 16,4964,08€32,19
20,420,445 73 1752379C 1005X 20,4X 20,4121,78€3,26
25,445 70 1762379F4 1005X 25,4X 20,4128,52€4,06
30,445 70 1772379F4 1005X 30,4X 20,4169,71€4,86
20,432,445 70 1782379F4 1005X 32,4X 20,4173,48€5,18
40,445 70 1792379F4 1005X 40,4X 20,4184,57€6,46
50,445 70 1802379F4 1005X 50,4X 20,4235,35€8,06
60,445 70 1812379F4 1005X 60,4X 20,4255,55€9,66
70,445 70 1832379F4 1005X 70,4X 20,4293,06€11,26
80,445 70 1842379F4 1005X 80,4X 20,4313,13€12,86
90,445 70 1852379F4 1005X 90,4X 20,4343,97€14,46
100,445 70 1862379F4 1005X100,4X 20,4345,00€16,06
120,445 70 1882379F4 1005X120,4X 20,4467,57€19,25
130,445 70 1892379F4 1005X130,4X 20,4523,33€20,85
140,445 70 1902379F4 1005X140,4X 20,4572,01€22,45
150,445 70 1912379F4 1005X150,4X 20,4572,82€24,05
160,445 70 1932379F4 1005X160,4X 20,4603,83€25,65
180,445 70 1942379F4 1005X180,4X 20,4754,59€28,85
200,445 70 1962379F4 1005X200,4X 20,4750,50€32,05
250,445 70 1992379F4 1005X250,4X 20,4987,25€40,04
300,445 70 20148,04
22,430,445 70 2062379F4 1005X 30,4X 22,4203,04€5,34
40,445 70 2082379F4 1005X 40,4X 22,4220,12€7,09
50,445 70 2092379F4 1005X 50,4X 22,4266,08€8,85
80,445 70 2132379F4 1005X 80,4X 22,4354,65€14,12
100,445 70 2152379F4 1005X100,4X 22,4412,21€17,63
200,445 70 2252379F4 1005X200,4X 22,4884,59€35,19
25,425,445 73 2342379C 1005X 25,4X 25,4190,68€5,06
30,445 70 2352379F4 1005X 30,4X 25,4214,10€6,05
32,445 70 2362379F4 1005X 32,4X 25,4220,04€6,45
40,445 70 2372379F4 1005X 40,4X 25,4242,14€8,04
50,445 70 2382379F4 1005X 50,4X 25,4270,90€10,04
60,445 70 2392379F4 1005X 60,4X 25,4297,46€12,03
70,445 70 2412379F4 1005X 70,4X 25,4344,37€14,02
80,445 70 2422379F4 1005X 80,4X 25,4355,45€16,01
25,490,445 70 2432379F4 1005X 90,4X 25,4399,33€18,00
100,445 70 2442379F4 1005X100,4X 25,4442,19€19,99
120,445 70 2462379F4 1005X120,4X 25,4540,63€23,97
125,445 71 5012379F4 1005X125,4X 25,4525,55€24,97
140,445 70 2482379F4 1005X140,4X 25,4656,17€27,96
150,445 70 2492379F4 1005X150,4X 25,4654,73€29,95
160,445 70 2512379F4 1005X160,4X 25,4739,68€31,94
180,445 70 2522379F4 1005X180,4X 25,4860,26€35,92
200,445 70 2542379F4 1005X200,4X 25,4945,18€39,90
250,445 70 25749,86
30,430,445 73 2932379C 1005X 30,4X 30,4236,02€7,24
32,445 70 2942379F4 1005X 32,4X 30,4238,22€7,72
40,445 70 2952379F4 1005X 40,4X 30,4270,90€9,63
50,445 70 2962379F4 1005X 50,4X 30,4295,25€12,01
60,445 70 2972379F4 1005X 60,4X 30,4332,93€14,39
70,445 70 2992379F4 1005X 70,4X 30,4399,33€16,78
80,445 70 3002379F4 1005X 80,4X 30,4421,48€19,16
100,445 70 3022379F4 1005X100,4X 30,4515,27€23,93
150,445 70 3072379F4 1005X150,4X 30,4765,43€35,84
200,445 70 3122379F4 1005X200,4X 30,41 076,06€47,76
32,432,445 73 3232379C 1005X 32,4X 32,4254,00€8,23
40,445 70 3242379F4 1005X 40,4X 32,4292,66€10,26
50,445 70 3252379F4 1005X 50,4X 32,4314,00€12,80
60,445 70 3262379F4 1005X 60,4X 32,4381,53€15,34
63,445 70 3272379F4 1005X 63,4X 32,4390,05€16,10
80,445 70 3292379F4 1005X 80,4X 32,4435,52€20,42
100,445 70 3312379F4 1005X100,4X 32,4537,38€25,50
125,445 71 5112379F4 1005X125,4X 32,4700,82€31,85
180,445 70 3392379F4 1005X180,4X 32,41 005,86€45,82
200,445 70 3412379F4 1005X200,4X 32,41 119,78€50,90
250,445 70 3442379F4 1005X250,4X 32,41 272,36€63,60
40,440,445 73 3822379C 1005X 40,4X 40,4310,77€12,79
50,445 70 3832379F4 1005X 50,4X 40,4392,70€15,96
60,445 70 3842379F4 1005X 60,4X 40,4430,70€19,13
70,445 70 3862379F4 1005X 70,4X 40,4470,59€22,30
80,445 70 3872379F4 1005X 80,4X 40,4521,89€25,46
90,445 70 3882379F4 1005X 90,4X 40,4601,62€28,63
100,445 70 3892379F4 1005X100,4X 40,4670,63€31,80
125,445 71 5182379F4 1005X125,4X 40,4800,79€39,71
50,450,445 73 4412379C 1005X 50,4X 50,4451,03€19,91
60,445 70 4422379F4 1005X 60,4X 50,4496,74€23,86
80,445 70 4452379F4 1005X 80,4X 50,4581,67€31,76
90,445 70 4462379F4 1005X 90,4X 50,4679,50€35,72
100,445 70 4472379F4 1005X100,4X 50,4764,86€39,67
150,445 70 4522379F4 1005X150,4X 50,41 102,56€59,42
60,480,445 70 5032379F4 1005X 80,4X 60,4691,57€38,07
100,445 70 5052379F4 1005X100,4X 60,4875,30€47,54
70,470,445 73 5312379C 1005X 70,4X 70,4730,99€38,85
80,480,445 73 5902379C 1005X 80,4X 80,4935,04€50,67
100,445 70 5922379F4 1005X100,4X 80,41 188,30€63,28
100,4100,445 73 6502379C 1005X100,4X100,41 395,41€79,02

Spessore: h8, Ra 1,6
Lunghezza 1000 mm : 0, +5 mm

: Segato, Ra 25 - : Rettificato, Ra 1,6

Il prodotto non adatta alla realizzazione di impronte / parti figura che devono ricevere lucidatura tipo ottica.

Spessore: 0, +0,25 mm, Ra 3,2 - Larghezza : 0, +0,4 mm, Ra 3,2
Lunghezza 1005 mm : +5, +25 mm, Ra 25

: Segato, Ra 25 - : Fresato, Ra 3,2

Il prodotto non adatta alla realizzazione di impronte / parti figura che devono ricevere lucidatura tipo ottica.

LA 2379 - Piatti di precisione

2 lati rettificati, 2 lati fresati, estremità segate - Lunghezza 500 mm 2379F2R2

▼▼
SpessoreLargh.Codice LugandProdotto€ senza IVAPeso kg
2,210,345 77 0012379F2R2 500X 10,3X 2,221,27€0,09
12,345 77 0022379F2R2 500X 12,3X 2,226,38€0,11
15,345 77 0032379F2R2 500X 15,3X 2,225,28€0,13
20,345 77 0042379F2R2 500X 20,3X 2,227,26€0,17
25,345 77 0052379F2R2 500X 25,3X 2,227,81€0,22
30,345 77 0062379F2R2 500X 30,3X 2,230,97€0,26
40,345 77 0072379F2R2 500X 40,3X 2,232,78€0,35
50,345 77 0082379F2R2 500X 50,3X 2,234,78€0,43
60,345 77 0092379F2R2 500X 60,3X 2,241,54€0,52
75,345 77 0102379F2R2 500X 75,3X 2,247,42€0,65
80,345 77 0112379F2R2 500X 80,3X 2,252,23€0,69
100,345 77 0122379F2R2 500X100,3X 2,265,82€0,86
150,345 77 0152379F2R2 500X150,3X 2,285,26€1,29
200,345 77 0162379F2R2 500X200,3X 2,2124,52€1,72
250,345 77 0172379F2R2 500X250,3X 2,2132,56€2,15
300,345 77 0182379F2R2 500X300,3X 2,2156,19€2,58
3,210,345 77 0192379F2R2 500X 10,3X 3,224,45€0,13
12,345 77 0202379F2R2 500X 12,3X 3,228,89€0,15
15,345 77 0212379F2R2 500X 15,3X 3,229,44€0,19
20,345 77 0222379F2R2 500X 20,3X 3,229,19€0,25
25,345 77 0232379F2R2 500X 25,3X 3,230,82€0,32
30,345 77 0242379F2R2 500X 30,3X 3,233,10€0,38
40,345 77 0252379F2R2 500X 40,3X 3,237,70€0,50
50,345 77 0262379F2R2 500X 50,3X 3,241,54€0,63
60,345 77 0272379F2R2 500X 60,3X 3,245,45€0,75
75,345 77 0282379F2R2 500X 75,3X 3,253,66€0,94
80,345 77 0292379F2R2 500X 80,3X 3,256,13€1,00
100,345 77 0302379F2R2 500X100,3X 3,270,55€1,25
120,345 77 0312379F2R2 500X120,3X 3,280,95€1,50
125,345 77 0322379F2R2 500X125,3X 3,280,09€1,56
150,345 77 0332379F2R2 500X150,3X 3,291,77€1,88
200,345 77 0342379F2R2 500X200,3X 3,2126,96€2,50
250,345 77 0352379F2R2 500X250,3X 3,2150,26€3,12
300,345 77 0362379F2R2 500X300,3X 3,2172,72€3,75
4,24,245 73 4042379F2R2 500X 4,2X 4,242,93€0,07
10,345 77 0372379F2R2 500X 10,3X 4,227,65€0,17
12,345 77 0382379F2R2 500X 12,3X 4,231,44€0,20
15,345 77 0392379F2R2 500X 15,3X 4,230,09€0,25
20,345 77 0402379F2R2 500X 20,3X 4,230,03€0,33
25,345 77 0412379F2R2 500X 25,3X 4,232,78€0,41
30,345 77 0422379F2R2 500X 30,3X 4,237,72€0,50
40,345 77 0432379F2R2 500X 40,3X 4,243,44€0,66
50,345 77 0442379F2R2 500X 50,3X 4,245,93€0,82
60,345 77 0452379F2R2 500X 60,3X 4,251,56€0,99
75,345 77 0462379F2R2 500X 75,3X 4,258,14€1,23
80,345 77 0472379F2R2 500X 80,3X 4,259,28€1,32
100,345 77 0482379F2R2 500X100,3X 4,269,70€1,64
120,345 77 0492379F2R2 500X120,3X 4,293,39€1,97
125,345 77 0502379F2R2 500X125,3X 4,286,57€2,05
150,345 77 0512379F2R2 500X150,3X 4,296,17€2,46
200,345 77 0522379F2R2 500X200,3X 4,2131,51€3,28
250,345 77 0532379F2R2 500X250,3X 4,2156,64€4,10
300,345 77 0542379F2R2 500X300,3X 4,2186,49€4,92
5,25,245 73 4052379F2R2 500X 5,2X 5,2 *35,51€0,11
10,345 77 0552379F2R2 500X 10,3X 5,232,18€0,21
12,345 77 0562379F2R2 500X 12,3X 5,236,32€0,25
15,345 77 0572379F2R2 500X 15,3X 5,236,70€0,31
20,345 77 0582379F2R2 500X 20,3X 5,238,33€0,41
25,345 77 0592379F2R2 500X 25,3X 5,240,61€0,51
30,345 77 0602379F2R2 500X 30,3X 5,242,40€0,61
40,345 77 0612379F2R2 500X 40,3X 5,245,11€0,82
50,345 77 0622379F2R2 500X 50,3X 5,251,01€1,02
60,345 77 0632379F2R2 500X 60,3X 5,253,72€1,22
75,345 77 0642379F2R2 500X 75,3X 5,273,99€1,53
80,345 77 0652379F2R2 500X 80,3X 5,270,20€1,63
100,345 77 0662379F2R2 500X100,3X 5,282,76€2,03
120,345 77 0672379F2R2 500X120,3X 5,2105,40€2,44
125,345 77 0682379F2R2 500X125,3X 5,293,79€2,54
150,345 77 0692379F2R2 500X150,3X 5,2114,51€3,05
200,345 77 0702379F2R2 500X200,3X 5,2148,64€4,06
250,345 77 0712379F2R2 500X250,3X 5,2188,07€5,08
300,345 77 0722379F2R2 500X300,3X 5,2225,97€6,09
6,210,345 77 0732379F2R2 500X 10,3X 6,236,09€0,25
12,345 77 0742379F2R2 500X 12,3X 6,238,74€0,30
15,345 77 0752379F2R2 500X 15,3X 6,238,33€0,37
20,345 77 0762379F2R2 500X 20,3X 6,243,26€0,49
25,345 77 0772379F2R2 500X 25,3X 6,244,41€0,61
30,345 77 0782379F2R2 500X 30,3X 6,245,40€0,73
40,345 77 0792379F2R2 500X 40,3X 6,251,86€0,97
50,345 77 0802379F2R2 500X 50,3X 6,256,47€1,22
60,345 77 0812379F2R2 500X 60,3X 6,262,00€1,46
75,345 77 0822379F2R2 500X 75,3X 6,279,59€1,82
80,345 77 0832379F2R2 500X 80,3X 6,278,17€1,94
100,345 77 0842379F2R2 500X100,3X 6,288,61€2,43
120,345 77 0852379F2R2 500X120,3X 6,2120,67€2,91
125,345 77 0862379F2R2 500X125,3X 6,2111,22€3,03
150,345 77 0872379F2R2 500X150,3X 6,2132,31€3,63
200,345 77 0882379F2R2 500X200,3X 6,2170,45€4,84
250,345 77 0892379F2R2 500X250,3X 6,2205,46€6,05
300,345 77 0902379F2R2 500X300,3X 6,2246,71€7,26
8,28,245 73 4082379F2R2 500X 8,2X 8,237,87€0,26
10,345 77 0912379F2R2 500X 10,3X 8,243,26€0,33
12,345 77 0922379F2R2 500X 12,3X 8,247,77€0,39
15,345 77 0932379F2R2 500X 15,3X 8,246,76€0,49
20,345 77 0942379F2R2 500X 20,3X 8,249,81€0,65
25,345 77 0952379F2R2 500X 25,3X 8,250,98€0,81
30,345 77 0962379F2R2 500X 30,3X 8,253,10€0,97
40,345 77 0972379F2R2 500X 40,3X 8,258,20€1,29
50,345 77 0982379F2R2 500X 50,3X 8,259,86€1,61
60,345 77 0992379F2R2 500X 60,3X 8,271,56€1,93
75,345 77 1002379F2R2 500X 75,3X 8,289,35€2,41
80,345 77 1012379F2R2 500X 80,3X 8,290,72€2,57
100,345 77 1022379F2R2 500X100,3X 8,2108,71€3,21
120,345 77 1032379F2R2 500X120,3X 8,2138,33€3,85
125,345 77 1042379F2R2 500X125,3X 8,2137,07€4,01
150,345 77 1052379F2R2 500X150,3X 8,2150,14€4,81
8,2200,345 77 1062379F2R2 500X200,3X 8,2205,61€6,41
250,345 77 1072379F2R2 500X250,3X 8,2242,46€8,00
300,345 77 1082379F2R2 500X300,3X 8,2281,10€9,60
10,410,445 73 1092379C 500X 10,4X 10,441,18€0,42
12,345 77 1102379F2R2 500X 12,3X 10,449,09€0,50
15,345 77 1112379F2R2 500X 15,3X 10,447,10€0,62
20,345 77 1122379F2R2 500X 20,3X 10,449,79€0,82
25,345 77 1132379F2R2 500X 25,3X 10,454,51€1,03
30,345 77 1142379F2R2 500X 30,3X 10,457,98€1,23
40,345 77 1152379F2R2 500X 40,3X 10,467,44€1,63
50,345 77 1162379F2R2 500X 50,3X 10,474,39€2,04
60,345 77 1172379F2R2 500X 60,3X 10,480,69€2,45
75,345 77 1182379F2R2 500X 75,3X 10,4108,22€3,05
80,345 77 1192379F2R2 500X 80,3X 10,4113,01€3,26
100,345 77 1202379F2R2 500X100,3X 10,4133,53€4,07
120,345 77 1212379F2R2 500X120,3X 10,4164,68€4,88
125,345 77 1222379F2R2 500X125,3X 10,4161,34€5,08
150,345 77 1232379F2R2 500X150,3X 10,4190,33€6,10
200,345 77 1242379F2R2 500X200,3X 10,4246,31€8,12
250,345 77 1252379F2R2 500X250,3X 10,4287,67€10,15
300,345 77 1262379F2R2 500X300,3X 10,4341,26€12,18
12,412,445 73 1282379C 500X 12,4X 12,453,40€0,60
15,345 77 1292379F2R2 500X 15,3X 12,452,72€0,74
20,345 77 1302379F2R2 500X 20,3X 12,458,80€0,98
25,345 77 1312379F2R2 500X 25,3X 12,466,91€1,22
30,345 77 1322379F2R2 500X 30,3X 12,476,24€1,47
40,345 77 1332379F2R2 500X 40,3X 12,482,02€1,95
50,345 77 1342379F2R2 500X 50,3X 12,492,44€2,43
60,345 77 1352379F2R2 500X 60,3X 12,4104,34€2,92
75,345 77 1362379F2R2 500X 75,3X 12,4127,75€3,64
80,345 77 1372379F2R2 500X 80,3X 12,4127,48€3,88
100,345 77 1382379F2R2 500X100,3X 12,4152,97€4,85
120,345 77 1392379F2R2 500X120,3X 12,4191,96€5,82
125,345 77 1402379F2R2 500X125,3X 12,4187,08€6,06
150,345 77 1412379F2R2 500X150,3X 12,4207,44€7,27
200,345 77 1422379F2R2 500X200,3X 12,4309,17€9,69
250,345 77 1432379F2R2 500X250,3X 12,4406,91€12,10
15,415,445 73 1472379C 500X 15,4X 15,462,12€0,92
20,345 77 1482379F2R2 500X 20,3X 15,462,65€1,22
25,345 77 1492379F2R2 500X 25,3X 15,472,95€1,52
30,345 77 1502379F2R2 500X 30,3X 15,487,09€1,82
40,345 77 1512379F2R2 500X 40,3X 15,4102,25€2,42
50,345 77 1522379F2R2 500X 50,3X 15,4115,98€3,02
60,345 77 1532379F2R2 500X 60,3X 15,4135,12€3,62
75,345 77 1542379F2R2 500X 75,3X 15,4159,06€4,52
80,345 77 1552379F2R2 500X 80,3X 15,4161,05€4,82
100,345 77 1562379F2R2 500X100,3X 15,2198,41€6,02
120,345 77 1572379F2R2 500X120,3X 15,4242,81€7,23
125,345 77 1582379F2R2 500X125,3X 15,4248,47€7,53
150,345 77 1592379F2R2 500X150,3X 15,4305,10€9,03
200,345 77 1602379F2R2 500X200,3X 15,4402,53€12,03
250,345 77 1612379F2R2 500X250,3X 15,4492,05€15,03
18,418,445 73 1642379C 500X 18,4X 18,481,66€1,32
20,420,445 73 1662379C 500X 20,4X 20,487,69€1,62
25,345 77 1672379F2R2 500X 25,3X 20,499,83€2,01
30,345 77 1682379F2R2 500X 30,3X 20,4104,74€2,41
40,345 77 1692379F2R2 500X 40,3X 20,4129,35€3,21
50,345 77 1702379F2R2 500X 50,3X 20,4144,05€4,00
60,345 77 1712379F2R2 500X 60,3X 20,4161,05€4,80
75,345 77 1722379F2R2 500X 75,3X 20,4198,94€5,99
80,345 77 1732379F2R2 500X 80,3X 20,4199,87€6,39
100,345 77 1742379F2R2 500X100,3X 20,4241,51€7,98
120,345 77 1752379F2R2 500X120,3X 20,4293,77€9,57
125,345 77 1762379F2R2 500X125,3X 20,4293,10€9,97
150,345 77 1772379F2R2 500X150,3X 20,4340,45€11,96
200,345 77 1782379F2R2 500X200,3X 20,4429,28€15,94
25,425,445 73 1852379C 500X 25,4X 25,4104,15€2,52
30,345 77 1862379F2R2 500X 30,3X 25,4118,97€3,00
40,345 77 1872379F2R2 500X 40,3X 25,4138,88€3,99
50,345 77 1882379F2R2 500X 50,3X 25,4166,29€4,98
60,345 77 1892379F2R2 500X 60,3X 25,4188,89€5,97
75,345 77 1902379F2R2 500X 75,3X 25,4227,40€7,46
80,345 77 1912379F2R2 500X 80,3X 25,4237,07€7,95
100,345 77 1922379F2R2 500X100,3X 25,4284,04€9,94
125,345 77 1942379F2R2 500X125,3X 25,4338,12€12,41
150,345 77 1952379F2R2 500X150,3X 25,4392,61€14,89
200,345 77 1962379F2R2 500X200,3X 25,4544,22€19,84
30,430,445 73 2012379C 500X 30,4X 30,4152,76€3,60
40,345 77 2052379F2R2 500X 40,3X 30,4148,95€4,78
50,345 77 2062379F2R2 500X 50,3X 30,4180,83€5,96
60,345 77 2072379F2R2 500X 60,3X 30,4195,59€7,15
75,345 77 2082379F2R2 500X 75,3X 30,4251,52€8,93
80,345 77 2092379F2R2 500X 80,3X 30,4262,29€9,52
100,345 77 2102379F2R2 500X100,3X 30,4336,18€11,89
120,345 77 2112379F2R2 500X120,3X 30,4412,68€14,26
125,345 77 2122379F2R2 500X125,3X 30,4396,45€14,86
150,345 77 2132379F2R2 500X150,3X 30,4502,20€17,82
200,345 77 2142379F2R2 500X200,3X 30,4607,59€23,75
40,440,445 73 2232379C 500X 40,4X 40,4218,97€6,37
50,345 77 2242379F2R2 500X 50,3X 40,4234,29€7,93
60,345 77 2252379F2R2 500X 60,3X 40,4260,22€9,50
75,345 77 2262379F2R2 500X 75,3X 40,4278,50€11,86
80,345 77 2272379F2R2 500X 80,3X 40,4307,28€12,65
100,345 77 2282379F2R2 500X100,3X 40,4362,67€15,80
150,345 77 2312379F2R2 500X150,3X 40,4509,27€23,68
200,345 77 2322379F2R2 500X200,3X 40,4637,04€31,56
50,450,445 73 2602379C 500X 50,4X 50,4301,35€9,91
60,345 70 7502379F4 500X 60,3X 50,4278,88€11,85
80,345 70 7512379F4 500X 80,3X 50,4322,99€15,78
100,345 70 7522379F4 500X100,3X 50,4425,66€19,71
60,460,445 73 2702379C 500X 60,4X 60,4324,18€14,23
70,470,445 73 2722379C 500 X 70,4X 70,4413,96€19,33
80,480,445 73 7142379C 500 X 80,4X 80,4490,61€25,21

Spessore: 0, +0,05 mm, Ra 1,6 - Larghezza : 0, +0,2 mm, Ra 3,2
Lunghezza 500 mm : +0, +5 mm, Ra 25

: Segato, Ra 25 - : Fresato, Ra 3,2 - : Rettificato, Ra 1,6

Il prodotto non adatta alla realizzazione di impronte / parti figura che devono ricevere lucidatura tipo ottica.
