LA 2312 - Acciaio pretrattato 280-320 HB pronto per l’uso 50 22

EN 40CrMnMoS8.6+QT (Ex AFNOR 40CMD8S+QT) W.Nr 1.2312 - AISI P20 +S - PT 110 kg/mm² risolforato

Consegna ≤ 320 HB
Nit. 650 HV

Composizione chimico in %

CMnSiCrMoSPFe
Mini0,351,400,201,800,150,05-Base
Maxi0,451,600,352,000,250,100,030Base

Proprietà fisiche a 20 °C

Densità : 7,85

Modulo d’elasticità E : 210 000 N/mm²

Coefficiente di Poisson V : 0,3

Coefficiente medio di dilatazione in m/m* °C
tra 20 °C e 100 °C
: 11,9 x 10-6
tra 20 °C e 200 °C : 12,4 x 10-6

Conducibilità termica a 20 °C in W (m*k) : 34

Magnetico

Punti di trasformazione

Ac1 : 715 °C, Ac3 : 790 °C.

Fucinatura

1100 °C - 900 °C seguita da un raffreddamento lento e guidato.

Ricotto

750 °C. Raffreddamento lento.

Stato di fornitura

Acciaio consegnato allo stato trattato pronto per l’uso :
- Temprato rinvenuto e stabilizzato per una durezza
di 280-320 HB.

Valori tipo delle caratteristiche meccaniche allo stato di fornitura:
- Resistenza meccanica Rm : 1100-950 MPa.
- Limite elastico Rp 0,2 : 830-650 MPa .
- Allungamento 5d : 11 %.

Controllo US secondo EN 10 160- E3 S3// SEP 1921- E/e

Identificazione: Blu croci nere .

Trattamento termico

Sconsigliato; consultarci se necessario.

Attitudine all’uso

Acciaio per utensili debolmente legato con una lavorabilità migliorata, utilizzato nelle utensilerie e nella meccanica generale.

Attitudine alla fotoincisione

La tipologia LA2312 non è idonea alla fotoincisione.

Attitudine alla lucidatura

La tipologia LA 2312 non è idonea alla lucidatura.

Possibilità di lucidatura aleatoria senza garanzia del risultato.

Attitudine alla saldatura

Adatto alla saldatura TIG e al laser.

Bacchetta Ø 1,6 mm. - Codice Lugand: 43 05 001.

Sezioni disponibili delle lamiere in mm (larghezza massima: 2000 mm)

202530354045505560657075
8590105110115125135150160175190205
250265280305325340350360375405450

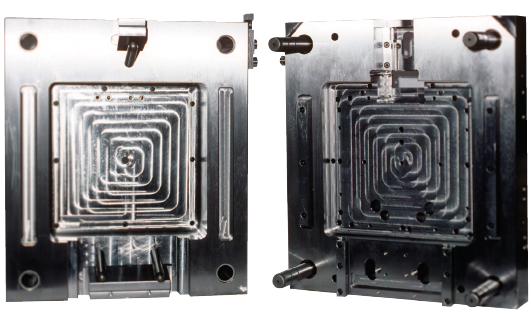

Impieghi industriali

Piastre e telaio di stampi metallici.

Pezzi di meccanica generale debolmente sollecitati.

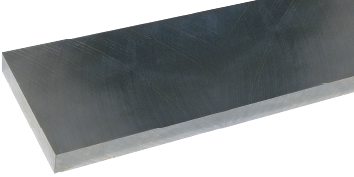

LA 2312 - Piatti di precisione

2 lati e 2 facce fresate, 2 estremità (teste) di taglio - Lunghezza 500 mm 2312F4

▼▼
SpessoreLargh.Codice LugandProdotto€ senza IVAPeso kg
4,440,445 21 9342312F4 500X 40,4X 4,465,55€0,69
50,445 21 9362312F4 500X 50,4X 4,470,29€0,86
60,445 21 9382312F4 500X 60,4X 4,480,05€1,04
70,445 21 9422312F4 500X 70,4X 4,499,77€1,21
80,445 21 9442312F4 500X 80,4X 4,4104,67€1,38
100,445 21 9462312F4 500X100,4X 4,4112,02€1,72
5,440,445 21 9542312F4 500X 40,4X 5,463,59€0,85
50,445 21 9562312F4 500X 50,4X 5,471,67€1,06
60,445 21 9582312F4 500X 60,4X 5,473,35€1,27
70,445 21 9622312F4 500X 70,4X 5,490,33€1,48
80,445 21 9642312F4 500X 80,4X 5,490,80€1,69
100,445 21 9662312F4 500X100,4X 5,497,36€2,11
6,425,445 16 3892312F4 500X 25,4X 6,440,51€0,63
30,445 16 3902312F4 500X 30,4X 6,439,89€0,76
32,445 16 3912312F4 500X 32,4X 6,438,69€0,81
40,445 16 3922312F4 500X 40,4X 6,445,16€1,01
50,445 16 3932312F4 500X 50,4X 6,447,89€1,26
60,445 16 3942312F4 500X 60,4X 6,457,95€1,51
70,445 16 3962312F4 500X 70,4X 6,461,78€1,76
80,445 16 3972312F4 500X 80,4X 6,467,83€2,01
100,445 16 3982312F4 500X100,4X 6,495,98€2,51
8,420,445 16 3992312F4 500X 20,4X 8,437,69€0,67
25,445 16 4002312F4 500X 25,4X 8,439,73€0,83
30,445 16 4012312F4 500X 30,4X 8,442,70€1,00
32,445 16 4022312F4 500X 32,4X 8,445,16€1,06
40,445 16 4032312F4 500X 40,4X 8,445,62€1,32
50,445 16 4042312F4 500X 50,4X 8,452,17€1,65
60,445 16 4052312F4 500X 60,4X 8,470,13€1,98
63,445 16 4062312F4 500X 63,4X 8,459,73€2,08
70,445 16 4072312F4 500X 70,4X 8,465,92€2,31
80,445 16 4092312F4 500X 80,4X 8,470,65€2,63
100,445 16 4102312F4 500X100,4X 8,497,82€3,29
125,445 16 4122312F4 500X125,4X 8,4110,94€4,11
150,445 16 4132312F4 500X150,4X 8,4153,43€4,93
175,445 16 4152312F4 500X175,4X 8,4169,92€5,75
200,445 16 4172312F4 500X200,4X 8,4190,07€6,57
10,420,445 16 4182312F4 500X 20,4X 10,439,73€0,83
25,445 16 4202312F4 500X 25,4X 10,441,79€1,03
30,445 16 4212312F4 500X 30,4X 10,444,92€1,23
32,445 16 4222312F4 500X 32,4X 10,445,35€1,31
40,445 16 4232312F4 500X 40,4X 10,444,77€1,64
50,445 16 4242312F4 500X 50,4X 10,461,34€2,04
60,445 16 4252312F4 500X 60,4X 10,470,12€2,45
10,470,445 16 4312312F4 500X 70,4X 10,470,43€2,86
80,445 16 4332312F4 500X 80,4X 10,480,62€3,26
100,445 16 4352312F4 500X100,4X 10,4103,90€4,07
125,445 16 4362312F4 500X125,4X 10,4119,94€5,09
150,445 16 4382312F4 500X150,4X 10,4162,81€6,10
175,445 16 4392312F4 500X175,4X 10,4178,01€7,11
200,445 16 4412312F4 500X200,4X 10,4200,63€8,13
250,445 16 4432312F4 500X250,4X 10,4242,31€10,16
300,445 16 4442312F4 500X300,4X 10,4279,58€12,18
12,412,445 20 0012312F4 500X 12,4X 12,449,65€0,60
20,445 16 4462312F4 500X 20,4X 12,439,74€0,99
25,445 16 4482312F4 500X 25,4X 12,445,60€1,23
30,445 16 4492312F4 500X 30,4X 12,447,61€1,47
32,445 16 4502312F4 500X 32,4X 12,452,18€1,57
40,445 16 4512312F4 500X 40,4X 12,456,43€1,95
50,445 16 4522312F4 500X 50,4X 12,464,06€2,44
60,445 16 4532312F4 500X 60,4X 12,473,51€2,92
70,445 16 4552312F4 500X 70,4X 12,475,98€3,40
80,445 16 4562312F4 500X 80,4X 12,477,58€3,89
100,445 16 4572312F4 500X100,4X 12,4109,37€4,86
125,445 16 4582312F4 500X125,4X 12,4128,84€6,06
150,445 16 4592312F4 500X150,4X 12,4172,00€7,27
175,445 16 4602312F4 500X175,4X 12,4189,56€8,48
200,445 16 4612312F4 500X200,4X 12,4212,57€9,69
250,445 16 4632312F4 500X250,4X 12,4287,44€12,11
300,445 16 4642312F4 500X300,4X 12,4321,20€14,53
15,415,445 20 0022312F4 500X 15,4X 15,453,23€0,92
20,445 16 4652312F4 500X 20,4X 15,455,33€1,23
25,445 16 4662312F4 500X 25,4X 15,455,76€1,53
30,445 16 4672312F4 500X 30,4X 15,456,84€1,83
32,445 16 4692312F4 500X 32,4X 15,459,97€1,95
40,445 16 4702312F4 500X 40,4X 15,461,62€2,43
50,445 16 4722312F4 500X 50,4X 15,468,19€3,03
60,445 16 4732312F4 500X 60,4X 15,485,20€3,63
63,445 16 4752312F4 500X 63,4X 15,477,95€3,81
70,445 16 4772312F4 500X 70,4X 15,483,12€4,23
80,445 16 4782312F4 500X 80,4X 15,4114,69€4,83
100,445 16 4802312F4 500X100,4X 15,4118,47€6,03
125,445 16 4822312F4 500X125,4X 15,4151,00€7,53
150,445 16 4832312F4 500X150,4X 15,4182,34€9,03
175,445 16 4842312F4 500X175,4X 15,4207,08€10,53
200,445 16 4852312F4 500X200,4X 15,4228,32€12,04
250,445 16 4882312F4 500X250,4X 15,4324,69€15,04
15,4300,445 16 4912312F4 500X300,4X 15,4349,34€18,04
16,416,445 20 0032312F4 500X 16,4X 16,455,25€1,05
25,445 16 4932312F4 500X 25,4X 16,457,01€1,62
30,445 16 4952312F4 500X 30,4X 16,458,47€1,94
40,445 16 4982312F4 500X 40,4X 16,463,71€2,58
50,445 16 4992312F4 500X 50,4X 16,470,05€3,22
60,445 16 5012312F4 500X 60,4X 16,483,10€3,86
80,445 16 5042312F4 500X 80,4X 16,499,06€5,14
100,445 16 5052312F4 500X100,4X 16,4124,75€6,42
150,445 16 5082312F4 500X150,4X 16,4196,18€9,62
200,445 16 5102312F4 500X200,4X 16,4237,72€12,82
20,420,445 20 0042312F4 500X 20,4X 20,461,34€1,62
25,445 16 5142312F4 500X 25,4X 20,459,62€2,02
30,445 16 5152312F4 500X 30,4X 20,461,85€2,42
32,445 16 5162312F4 500X 32,4X 20,464,15€2,58
40,445 16 5172312F4 500X 40,4X 20,467,01€3,21
50,445 16 5182312F4 500X 50,4X 20,473,79€4,01
60,445 16 5212312F4 500X 60,4X 20,486,85€4,81
63,445 16 5232312F4 500X 63,4X 20,496,30€5,04
70,445 16 5252312F4 500X 70,4X 20,494,58€5,60
80,445 16 5262312F4 500X 80,4X 20,4103,60€6,40
100,445 16 5282312F4 500X100,4X 20,4136,59€7,99
125,445 16 5312312F4 500X125,4X 20,4181,55€9,98
150,445 16 5322312F4 500X150,4X 20,4204,67€11,97
200,445 16 5342312F4 500X200,4X 20,4237,64€15,94
250,445 16 5362312F4 500X250,4X 20,4340,70€19,92
300,445 16 5382312F4 500X300,4X 20,4359,58€23,90
25,425,445 20 0052312F4 500X 25,4X 25,475,86€2,52
30,445 16 5392312F4 500X 30,4X 25,475,26€3,01
32,445 16 5402312F4 500X 32,4X 25,477,74€3,21
40,445 16 5412312F4 500X 40,4X 25,484,59€4,00
50,445 16 5422312F4 500X 50,4X 25,484,01€4,99
60,445 16 5432312F4 500X 60,4X 25,496,30€5,98
63,445 16 5442312F4 500X 63,4X 25,4109,08€6,28
70,445 16 5452312F4 500X 70,4X 25,4108,58€6,97
80,445 16 5462312F4 500X 80,4X 25,4118,99€7,96
100,445 16 5472312F4 500X100,4X 25,4142,79€9,95
125,445 16 5492312F4 500X125,4X 25,4192,29€12,42
150,445 16 5502312F4 500X150,4X 25,4211,35€14,90
200,445 16 5522312F4 500X200,4X 25,4274,56€19,85
250,445 16 5542312F4 500X250,4X 25,4348,32€24,80
300,445 16 5552312F4 500X300,4X 25,4401,10€29,76
30,430,445 20 0062312F4 500X 30,4X 30,493,81€3,60
40,445 16 5562312F4 500X 40,4X 30,4102,21€4,79
50,445 16 5572312F4 500X 50,4X 30,4103,94€5,98
60,445 16 5592312F4 500X 60,4X 30,4109,48€7,16
63,445 16 5602312F4 500X 63,4X 30,4126,43€7,52
70,445 16 5622312F4 500X 70,4X 30,4125,02€8,35
80,445 16 5632312F4 500X 80,4X 30,4139,91€9,53
100,445 16 5652312F4 500X100,4X 30,4162,04€11,90
125,445 16 5682312F4 500X125,4X 30,4214,23€14,87
150,445 16 5702312F4 500X150,4X 30,4260,74€17,83
32,432,445 20 0072312F4 500X 32,4X 32,4102,41€4,09
50,445 16 5762312F4 500X 50,4X 32,4115,09€6,37
60,445 16 5772312F4 500X 60,4X 32,4131,94€7,63
40,440,445 20 0082312F4 500X 40,4X 40,4106,35€6,37
50,445 16 5932312F4 500X 50,4X 40,4110,81€7,94
60,445 16 5942312F4 500X 60,4X 40,4134,11€9,52
70,445 16 5962312F4 500X 70,4X 40,4140,91€11,09
80,445 16 5972312F4 500X 80,4X 40,4151,12€12,67
100,445 16 5982312F4 500X100,4X 40,4194,75€15,82
125,445 16 6002312F4 500X125,4X 40,4230,31€19,76
150,445 16 6012312F4 500X150,4X 40,4273,08€23,70
200,445 16 6032312F4 500X200,4X 40,4348,52€31,58
50,450,445 20 0092312F4 500X 50,4X 50,4145,31€9,91
60,445 16 6072312F4 500X 60,4X 50,4157,32€11,87
70,445 16 6092312F4 500X 70,4X 50,4175,20€13,84
80,445 16 6102312F4 500X 80,4X 50,4189,58€15,80
100,445 16 6112312F4 500X100,4X 50,4238,13€19,73
125,445 16 6142312F4 500X125,4X 50,4264,06€24,65
150,445 16 6152312F4 500X150,4X 50,4302,71€29,56
200,445 16 6182312F4 500X200,4X 50,4398,93€39,39
60,460,445 20 0102312F4 500X 60,4X 60,4195,53€14,23
70,445 16 6222312F4 500X 70,4X 60,4206,20€16,58
80,445 16 6232312F4 500X 80,4X 60,4241,45€18,94
100,445 16 6242312F4 500X100,4X 60,4266,97€23,65
70,470,445 20 0112312F4 500X 70,4X 70,4226,67€19,33
80,480,445 20 0122312F4 500X 80,4X 80,4318,31€25,21

Spessore: 0, +0,25 mm, Ra 3,2 - Larghezza : 0, +0,4 mm, Ra 3,2
Lunghezza 500 mm : 0, +5 mm, Ra 25

: Segato, Ra 25 - : Fresato, Ra 3,2

Non consigliato per applicazioni di lucidatura.

LA 2312 - Piatti di precisione

2 lati e 2 facce fresate, 2 estremità (teste) di taglio - Lunghezza 1005 mm 2312F4

▼▼
SpessoreLargh.Codice LugandProdotto€ senza IVAPeso kg
2,425,445 16 6642312F4 1005X 25,4X 2,4 *72,12€0,48
50,445 16 6702312F4 1005X 50,4X 2,4 *77,50€0,95
100,445 16 6802312F4 1005X100,4X 2,4 *110,66€1,89
3,425,445 16 7042312F4 1005X 25,4X 3,4 *73,38€0,68
50,445 16 7161,34
5,420,445 16 7582312F4 1005X 20,4X 5,4 *60,57€0,86
4,440,445 16 7322312F4 1005X 40,4X 4,482,42€1,39
50,445 16 7342312F4 1005X 50,4X 4,484,83€1,74
60,445 16 7382312F4 1005X 60,4X 4,4104,62€2,08
70,445 16 7462312F4 1005X 70,4X 4,4133,52€2,34
80,445 16 7502312F4 1005X 80,4X 4,4139,78€2,77
100,445 16 7542312F4 1005X100,4X 4,4154,96€3,46
5,430,445 16 7682312F4 1005X 30,4X 5,4 *67,45€1,29
40,445 16 7722312F4 1005X 40,4X 5,481,58€1,71
50,445 16 7762312F4 1005X 50,4X 5,488,33€2,13
60,445 16 7802312F4 1005X 60,4X 5,493,18€2,56
70,445 16 7882312F4 1005X 70,4X 5,4117,88€2,98
80,445 16 7922312F4 1005X 80,4X 5,4124,21€3,40
100,445 16 7962312F4 1005X100,4X 5,4127,83€4,25
6,2 - 6,420,445 32 0192312F4 1005X 20,4X 6,238,32€0,99
25,445 32 0202312F4 1005X 25,4X 6,240,05€1,23
30,445 32 0212312F4 1005X 30,4X 6,243,52€1,48
32,445 16 8942312F4 1005X 32,4X 6,454,09€1,63
40,445 32 0222312F4 1005X 40,4X 6,245,26€1,96
50,445 32 0232312F4 1005X 50,4X 6,252,23€2,45
60,445 32 0242312F4 1005X 60,4X 6,262,68€2,94
63,445 16 8982312F4 1005X 63,4X 6,480,64€3,18
70,445 32 0252312F4 1005X 70,4X 6,271,39€3,42
80,445 32 0262312F4 1005X 80,4X 6,278,36€3,91
100,445 32 0272312F4 1005X100,4X 6,2100,99€4,88
125,445 16 8202312F4 1005X125,4X 6,4168,85€6,29
150,445 16 8212312F4 1005X150,4X 6,4229,13€7,55
200,445 32 0282312F4 1005X200,4X 6,2212,42€9,74
8,2 - 8,420,445 16 0012312F4 1005X 20,4X 8,238,37€1,31
25,445 16 0022312F4 1005X 25,4X 8,240,00€1,63
30,445 16 0032312F4 1005X 30,4X 8,243,77€1,95
32,445 16 0042312F4 1005X 32,4X 8,245,74€2,08
40,445 16 0052312F4 1005X 40,4X 8,247,21€2,60
50,445 16 0062312F4 1005X 50,4X 8,256,08€3,24
60,445 16 0072312F4 1005X 60,4X 8,264,92€3,88
63,445 16 9102312F4 1005X 63,4X 8,485,64€4,17
70,445 32 0292312F4 1005X 70,4X 8,276,61€4,53
80,445 16 0102312F4 1005X 80,4X 8,280,66€5,17
100,445 16 0122312F4 1005X100,4X 8,2108,20€6,45
125,445 16 9142312F4 1005X125,4X 8,4160,48€8,26
150,445 32 0302312F4 1005X150,4X 8,2172,38€9,67
175,445 16 9162312F4 1005X175,4X 8,4249,42€11,55
200,445 32 0312312F4 1005X200,4X 8,2222,86€12,88
50545 16 9022312F4 1005X505 X 8,2414,39€32,46
10,410,445 20 0202312F4 1005X 10,4X 10,448,74€0,85
20,445 16 0312312F4 1005X 20,4X 10,439,00€1,66
25,445 16 0322312F4 1005X 25,4X 10,440,51€2,07
30,445 16 0332312F4 1005X 30,4X 10,443,77€2,48
10,432,445 16 0342312F4 1005X 32,4X 10,445,74€2,64
40,445 16 0352312F4 1005X 40,4X 10,447,11€3,29
50,445 16 0362312F4 1005X 50,4X 10,466,90€4,11
60,445 16 0372312F4 1005X 60,4X 10,478,69€4,92
63,445 16 9182312F4 1005X 63,4X 10,4102,56€5,17
70,445 16 9192312F4 1005X 70,4X 10,483,61€5,74
80,445 16 0402312F4 1005X 80,4X 10,489,51€6,55
10,4100,445 16 0422312F4 1005X100,4X 10,4114,11€8,19
120,445 32 0322312F4 1005X120,4X 10,4149,73€9,82
125,445 16 9202312F4 1005X125,4X 10,4203,70€10,22
150,445 16 0472312F4 1005X150,4X 10,4186,89€12,26
175,445 16 9212312F4 1005X175,4X 10,4263,98€14,30
200,445 16 0522312F4 1005X200,4X 10,4234,11€16,34
250,445 16 0552312F4 1005X250,4X 10,4282,31€20,41
300,445 16 0572312F4 1005X300,4X 10,4324,61€24,49
50545 16 9232312F4 1005X505 X 10,4474,12€41,17
12,412,445 20 0142312F4 1005X 12,4X 12,451,15€1,21
20,445 16 0612312F4 1005X 20,4X 12,445,74€1,98
25,445 16 0622312F4 1005X 25,4X 12,449,19€2,47
30,445 16 0632312F4 1005X 30,4X 12,451,15€2,95
32,445 16 0642312F4 1005X 32,4X 12,456,08€3,15
40,445 16 0652312F4 1005X 40,4X 12,462,96€3,93
50,445 16 0662312F4 1005X 50,4X 12,471,81€4,90
60,445 16 0672312F4 1005X 60,4X 12,482,62€5,87
70,445 16 0692312F4 1005X 70,4X 12,491,48€6,84
80,445 16 0702312F4 1005X 80,4X 12,492,48€7,82
100,445 16 0722312F4 1005X100,4X 12,4125,90€9,76
120,445 32 0332312F4 1005X120,4X 12,4163,67€11,70
125,445 16 9252312F4 1005X125,4X 12,4187,89€12,19
150,445 16 0772312F4 1005X150,4X 12,4198,70€14,62
200,445 16 0822312F4 1005X200,4X 12,4247,88€19,48
250,445 16 0852312F4 1005X250,4X 12,4334,30€24,34
300,445 16 0872312F4 1005X300,4X 12,4386,59€29,20
50545 16 9282312F4 1005X505 X 12,4512,49€49,03
15,415,445 20 0152312F4 1005X 15,4X 15,458,03€1,86
20,445 16 0912312F4 1005X 20,4X 15,456,08€2,46
25,445 16 0922312F4 1005X 25,4X 15,458,03€3,07
30,445 16 0932312F4 1005X 30,4X 15,460,00€3,67
32,445 16 0942312F4 1005X 32,4X 15,464,92€3,91
40,445 16 0952312F4 1005X 40,4X 15,469,83€4,88
50,445 16 0962312F4 1005X 50,4X 15,480,66€6,08
60,445 16 0972312F4 1005X 60,4X 15,487,54€7,29
70,445 16 0992312F4 1005X 70,4X 15,498,37€8,50
80,445 16 1002312F4 1005X 80,4X 15,4105,24€9,71
100,445 16 1022312F4 1005X100,4X 15,4134,77€12,12
120,445 16 1042312F4 1005X120,4X 15,4173,13€14,53
125,445 16 9312312F4 1005X125,4X 15,4227,14€15,14
150,445 16 1072312F4 1005X150,4X 15,4212,48€18,16
175,445 16 9332312F4 1005X175,4X 15,4303,26€21,17
200,445 16 1122312F4 1005X200,4X 15,4275,42€24,19
250,445 16 1152312F4 1005X250,4X 15,4374,35€30,23
300,445 16 1172312F4 1005X300,4X 15,4414,39€36,26
50545 16 9352312F4 1005X505 X 15,4677,73€60,96
16,416,445 20 0162312F4 1005X 16,4X 16,480,05€2,11
20,445 32 0342312F4 1005X 20,4X 16,460,94€2,62
25,445 16 9362312F4 1005X 25,4X 16,462,68€3,27
30,445 16 9372312F4 1005X 30,4X 16,466,90€3,91
32,445 16 9382312F4 1005X 32,4X 16,483,34€4,17
40,445 16 9392312F4 1005X 40,4X 16,473,77€5,19
50,445 16 9402312F4 1005X 50,4X 16,485,58€6,48
60,445 16 9412312F4 1005X 60,4X 16,498,37€7,76
63,445 16 9422312F4 1005X 63,4X 16,4115,79€8,15
70,445 16 9432312F4 1005X 70,4X 16,4133,51€9,05
80,445 16 9442312F4 1005X 80,4X 16,4114,11€10,34
100,445 16 1322312F4 1005X100,4X 16,4144,44€12,91
120,445 32 0352312F4 1005X120,4X 16,4188,05€15,48
250,445 16 9482312F4 1005X250,4X 16,4503,38€32,19
20,420,445 20 1512312F4 1005X 20,4X 20,466,90€3,26
25,445 16 1522312F4 1005X 25,4X 20,468,86€4,06
30,445 16 1532312F4 1005X 30,4X 20,471,81€4,86
32,445 16 1542312F4 1005X 32,4X 20,473,77€5,18
40,445 16 1552312F4 1005X 40,4X 20,478,69€6,46
50,445 16 1562312F4 1005X 50,4X 20,488,44€8,06
60,445 16 1572312F4 1005X 60,4X 20,4101,32€9,66
70,445 16 1592312F4 1005X 70,4X 20,4116,08€11,26
80,445 16 1602312F4 1005X 80,4X 20,4126,90€12,86
90,445 16 1612312F4 1005X 90,4X 20,4146,56€14,46
100,445 16 1622312F4 1005X100,4X 20,4157,38€16,06
110,445 16 1632312F4 1005X110,4X 20,4205,46€17,65
120,445 16 1642312F4 1005X120,4X 20,4196,75€19,25
140,445 16 1662312F4 1005X140,4X 20,4235,05€22,45
150,445 16 1672312F4 1005X150,4X 20,4245,91€24,05
160,445 16 1692312F4 1005X160,4X 20,4286,24€25,65
200,445 16 1722312F4 1005X200,4X 20,4306,98€32,05
250,445 16 1752312F4 1005X250,4X 20,4400,46€40,04
300,445 16 1772312F4 1005X300,4X 20,4442,25€48,04
350,445 16 1782312F4 1005X350,4X 20,4503,19€56,03
25,425,445 20 2122312F4 1005X 25,4X 25,483,61€5,06
30,445 16 2132312F4 1005X 30,4X 25,491,48€6,05
32,445 16 9542312F4 1005X 32,4X 25,494,43€6,45
40,445 16 2152312F4 1005X 40,4X 25,4100,71€8,04
50,445 16 2162312F4 1005X 50,4X 25,4103,29€10,04
60,445 16 2172312F4 1005X 60,4X 25,4115,09€12,03
63,445 16 9552312F4 1005X 63,4X 25,4125,90€12,62
70,445 16 2192312F4 1005X 70,4X 25,4131,76€14,02
80,445 16 2202312F4 1005X 80,4X 25,4145,59€16,01
90,445 16 2212312F4 1005X 90,4X 25,4166,23€18,00
100,445 16 2222312F4 1005X100,4X 25,4174,10€19,99
120,445 16 2242312F4 1005X120,4X 25,4209,51€23,97
125,445 16 9562312F4 1005X125,4X 25,4282,81€24,97
140,445 16 2262312F4 1005X140,4X 25,4346,49€27,96
160,445 16 2292312F4 1005X160,4X 25,4309,92€31,94
200,445 16 2322312F4 1005X200,4X 25,4348,99€39,90
250,445 16 2352312F4 1005X250,4X 25,4494,21€49,86
30,430,445 20 2732312F4 1005X 30,4X 30,4105,24€7,24
32,445 16 2742312F4 1005X 32,4X 30,4112,13€7,72
40,445 16 2752312F4 1005X 40,4X 30,4114,11€9,63
50,445 16 2762312F4 1005X 50,4X 30,4125,90€12,01
60,445 16 2772312F4 1005X 60,4X 30,4136,73€14,39
70,445 16 2792312F4 1005X 70,4X 30,4152,94€16,78
80,445 16 2802312F4 1005X 80,4X 30,4159,34€19,16
100,445 16 2822312F4 1005X100,4X 30,4200,67€23,93
125,445 16 9602312F4 1005X125,4X 30,4314,67€29,88
150,445 16 2872312F4 1005X150,4X 30,4304,70€35,84
200,445 16 2922312F4 1005X200,4X 30,4407,49€47,76
300,445 16 2972312F4 1005X300,4X 30,4564,27€71,59
32,432,445 20 3042312F4 1005X 32,4X 32,4114,11€8,23
50,445 16 3062312F4 1005X 50,4X 32,4132,80€12,80
60,445 16 9632312F4 1005X 60,4X 32,4188,05€15,34
63,445 16 9642312F4 1005X 63,4X 32,4150,51€16,10
70,445 16 9652312F4 1005X 70,4X 32,4204,56€17,88
80,445 16 9662312F4 1005X 80,4X 32,4181,08€20,42
125,445 16 9692312F4 1005X125,4X 32,4334,25€31,85
150,445 16 3172312F4 1005X150,4X 32,4316,89€38,20
40,440,445 20 3652312F4 1005X 40,4X 40,4131,81€12,79
50,445 16 3662312F4 1005X 50,4X 40,4141,80€15,96
60,445 16 3672312F4 1005X 60,4X 40,4158,38€19,13
70,445 16 3692312F4 1005X 70,4X 40,4172,38€22,30
80,445 16 3702312F4 1005X 80,4X 40,4190,19€25,46
100,445 16 3722312F4 1005X100,4X 40,4248,15€31,80
120,445 16 3742312F4 1005X120,4X 40,4304,70€38,13
125,445 16 9762312F4 1005X125,4X 40,4339,09€39,71
150,445 16 3772312F4 1005X150,4X 40,4312,85€47,63
200,445 16 9792312F4 1005X200,4X 40,4450,78€63,47
250,445 16 3852312F4 1005X250,4X 40,4549,20€79,30
50,450,445 20 4262312F4 1005X 50,4X 50,4178,04€19,91
60,445 16 4272312F4 1005X 60,4X 50,4189,40€23,86
70,445 16 4292312F4 1005X 70,4X 50,4212,48€27,81
80,445 16 4302312F4 1005X 80,4X 50,4244,09€31,76
100,445 16 4322312F4 1005X100,4X 50,4293,50€39,67
125,445 16 9842312F4 1005X125,4X 50,4390,18€49,54
150,445 16 4372312F4 1005X150,4X 50,4391,73€59,42
56,4100,445 32 0432312F4 1005X100,4X 56,4325,60€44,39
60,460,445 20 4872312F4 1005X 60,4X 60,4223,29€28,60
70,445 16 4892312F4 1005X 70,4X 60,4245,50€33,33
80,445 16 4902312F4 1005X 80,4X 60,4293,50€38,07
100,445 16 4922312F4 1005X100,4X 60,4331,36€47,54
125,445 16 9912312F4 1005X125,4X 60,4470,02€59,37
70,470,445 20 5192312F4 1005X 70,4X 70,4239,76€38,85
80,445 16 5202312F4 1005X 80,4X 70,4392,37€44,37
100,445 16 5222312F4 1005X100,4X 70,4425,15€55,41
125,445 16 9982312F4 1005X125,4X 70,4498,62€69,20
80,480,445 20 5802312F4 1005X 80,4X 80,4380,68€50,67
100,445 16 5822312F4 1005X100,4X 80,4414,68€63,28

Spessore: 0, +0,25 mm, Ra 3,2 - Larghezza : 0, +0,4 mm, Ra 3,2
Lunghezza 1005 mm : +5, +25 mm, Ra 25

: Segato, Ra 25 - : Fresato, Ra 3,2

Non consigliato per applicazioni di lucidatura.
