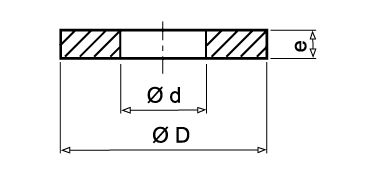

Rondelles plates de bridage - DIN 6340
LA6340
- Intercambiabile con: HWS9015. Rondelle piatte per flangia: • Trattate (350 + 80hv30). NF E25-518 - DIN 6340
| Nome | Codice Lugand | Prezzo senza IVA |
|---|
| RONDELLE LA6340 DIA 24 DIM 25 X60X 8MM | 4012124 | 2.9000 |
| RONDELLE LA6340 DIA 27 DIM 28 X68X10MM | 4012127 | 4.9200 |
| RONDELLE LA6340 DIA 30 DIM 31 X68X10MM | 4012130 | 4.9600 |
| RONDELLE LA6340 DIA 36 DIM 38 X80X10MM | 4012136 | 8.4000 |
| RONDELLE LA6340 DIA 42 DIM 44 X100X15MM | 4012142 | 23.1000 |
| RONDELLE LA6340 DIA 48 DIM 50 X110X17MM | 4012148 | 38.1000 |
| RONDELLE LA6340 DIA 6 DIM 6,4X17X 3MM | 4012106 | .6500 |
| RONDELLE LA6340 DIA 8 DIM 8,4X23X 4MM | 4012108 | .6900 |
| RONDELLE LA6340 DIA 10 DIM 10,5X28X 4MM | 4012110 | .7300 |
| RONDELLE LA6340 DIA 12 DIM 13 X35X 5MM | 4012112 | .8600 |
| RONDELLE LA6340 DIA 14 DIM 15 X40X 5MM | 4012114 | .9900 |
| RONDELLE LA6340 DIA 16 DIM 17 X45X 6MM | 4012116 | 1.2000 |
| RONDELLE LA6340 DIA 18 DIM 19 X45X 6MM | 4012118 | 1.5400 |
| RONDELLE LA6340 DIA 20 DIM 21 X50X 6MM | 4012120 | 1.9200 |
| RONDELLE LA6340 DIA 22 DIM 23 X50X 8MM | 4012122 | 2.3200 |
